Stix Light
Product Description
• Luminaire made of extrusion aluminium tube.
• Pure polyester powder coated finish for high durablity.
• Non yellowing UV stabilized Clear Acrylic Rod.
• Die cast aluminium mounting plate with an anchorage unit made out of hot dip galvanised steel for extra guarantee against corrosion.
• Integral constant current power supply suitable for operating
on 240V, 50Hz single phase AC supply.
• Luminaire supplied with one metre cable length and IP67 connector.
• Ordering guide : KL-4553-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K
(Special CCT on request - Amber / Red / Green / Blue).

Product Benefits
• Timeless modern design, quick & simple installation.
• Soft diffused lighting provides pedestrians glareless and distinctive lighting
with exceptional visual comfort.
• Sustainable LED technology offers durability and optimal light output with low
power consumption.

Area of Application

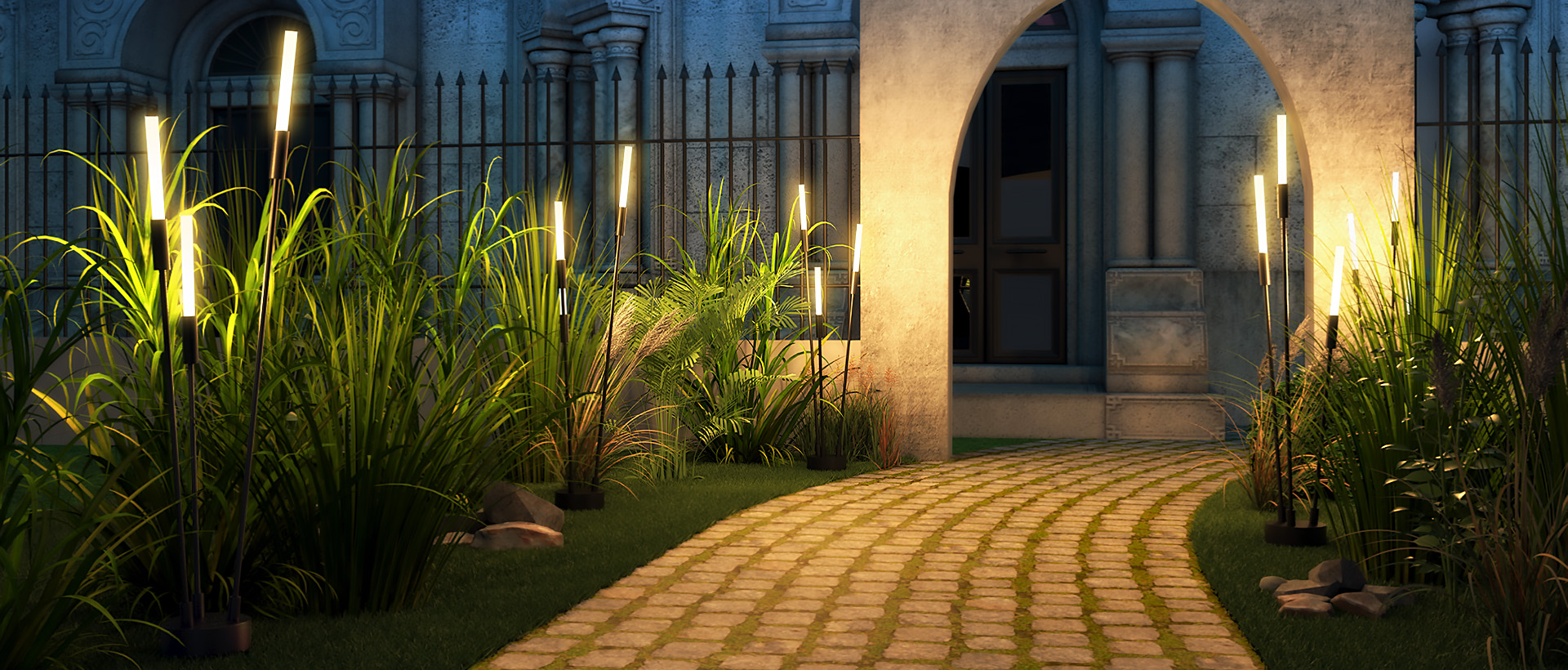

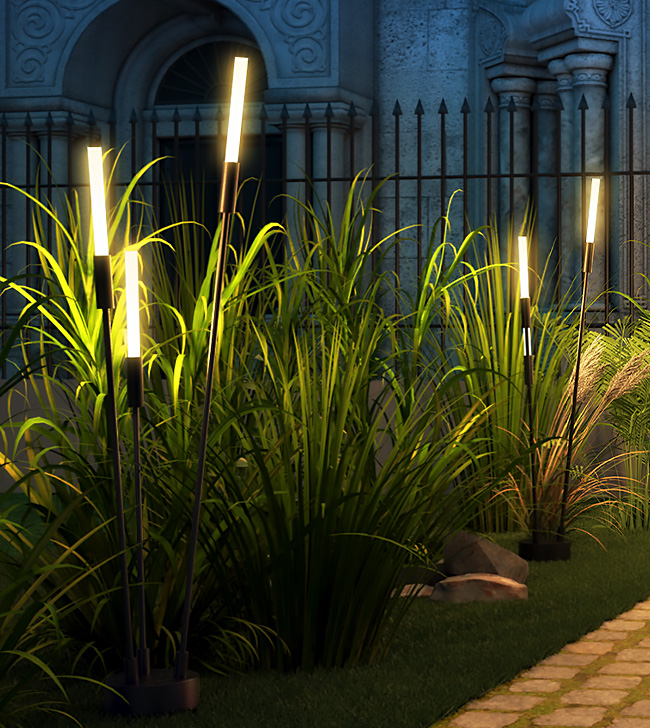

Suitable for gated community and non-public / low density public areas.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Special finish : Teak / Bamboo - On Request)
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

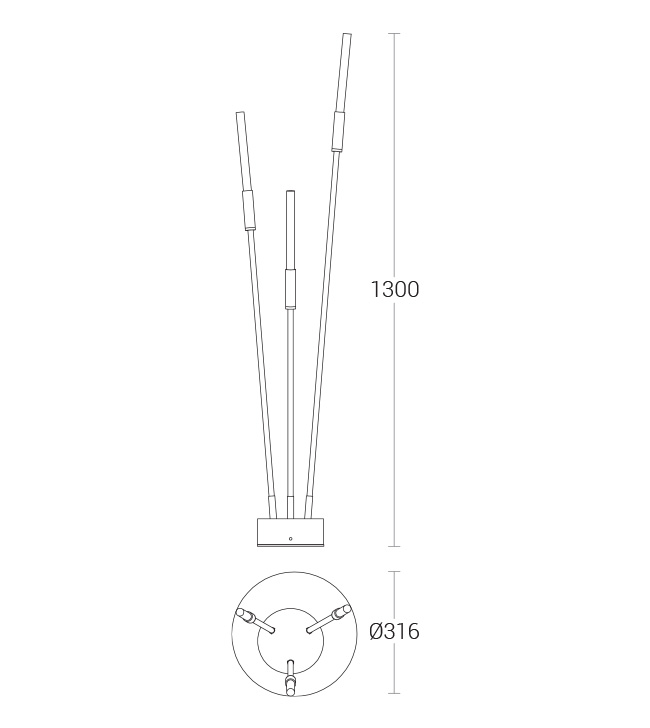

KL-45533 x 3W LED 2700K,3000K,4000K,5700K, Clear Acrylic RodØ316 x 1300mmM3
Detailed Foundation Drawing
4553.pdf
KL-4553.txt
