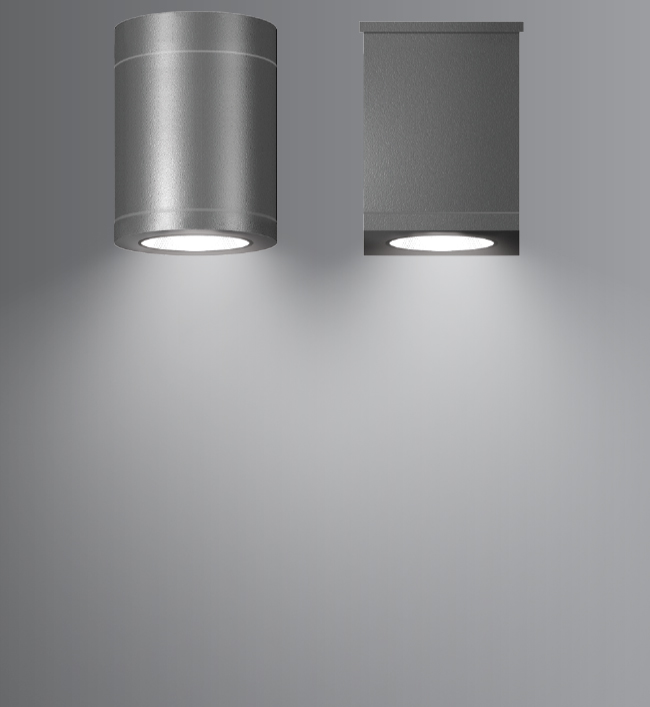

Cylin & Quad Mini
Compact and efficient ceiling mounted down lighters.Aesthetically pleasing and precise light where it is required.Sophisticated form to suit various applications and design for low mounting height for illumination where guidance and security lighting is required.

Product Description
• Luminaire made of pressure die cast aluminium,extruded aluminium & non corrosive stainless steel fasteners.
• Clear toughened glass.
• Silicone gasket.
• Cast aluminium plate for surface mounting onto the ceiling.
• Surface mounting on ceiling using hardware after connecting to the power supply.
• Prewired with GU10 holder and suitable for operation on 240V,50Hz single phase ac supply.

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation with low maintenance.
• Clear glass in the front with continuous silicone gasket to ensure adequate sealing.

Area of Application

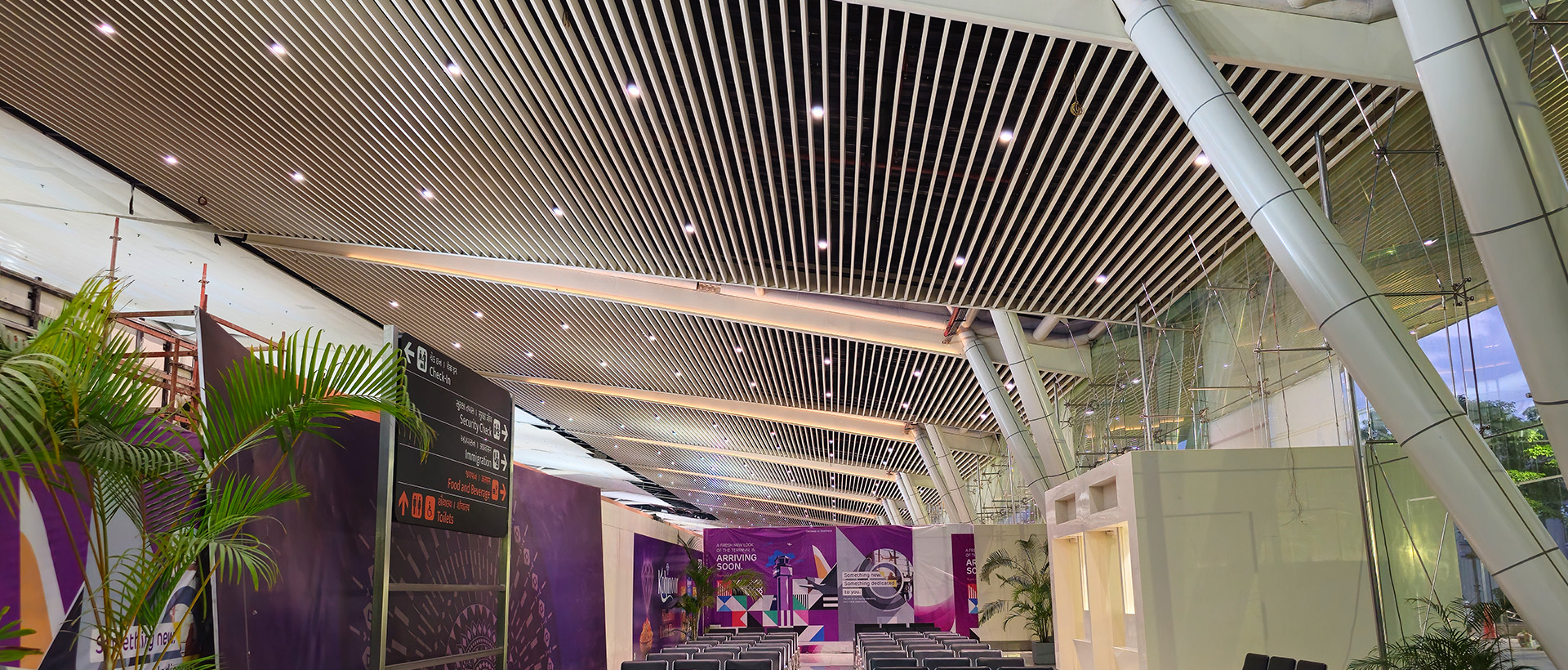

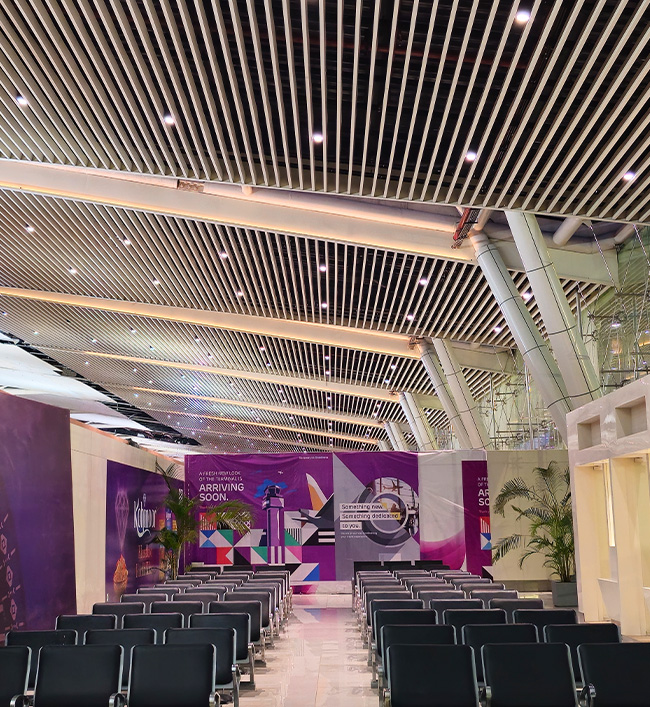

Lobbies & Foyers,Retail outlets,Corridors,Corporate,Residential & Educational premises,Hospitality,Industry,Commercial & Business Centers.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

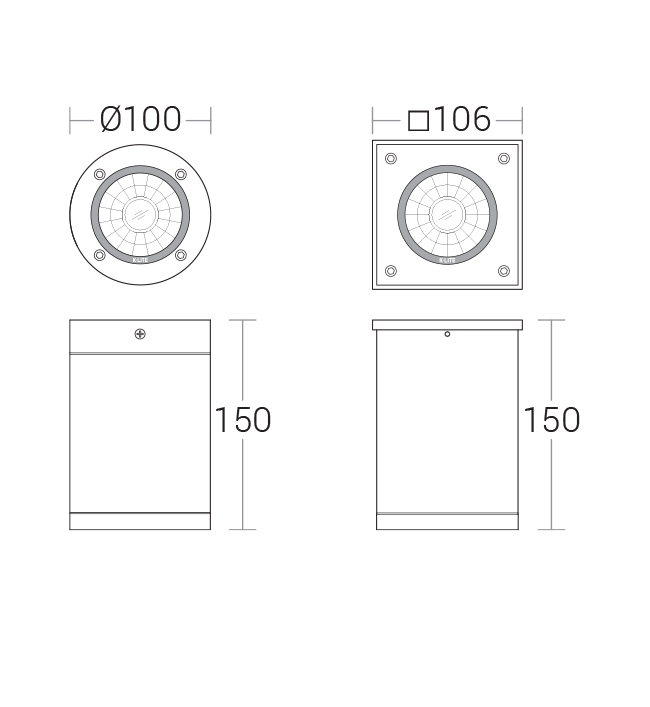

KL-4084GU10 Holder, Clear Toughened GlassØ100 x 150mm4084.pdf
KL-3632GU10 Holder, Clear Toughened GlassSq 106 x 150mm3632.pdf
