Erica

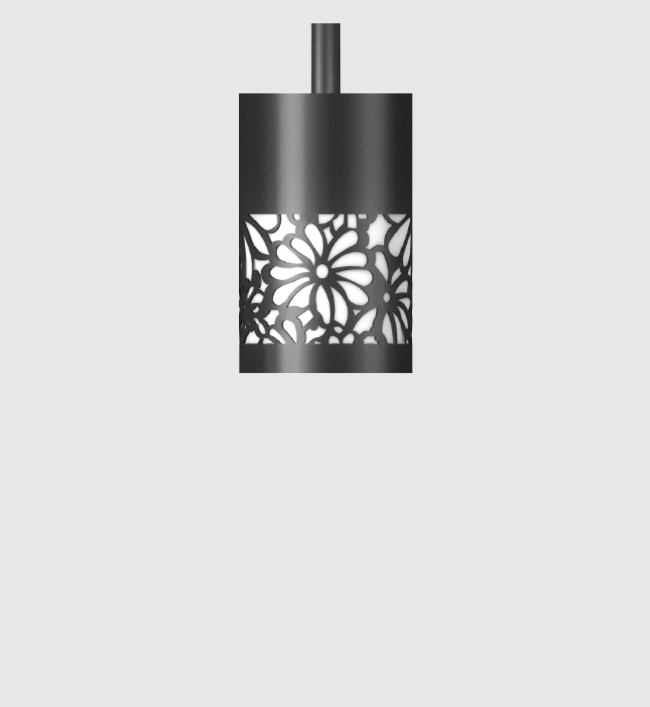

A modern pathway luminaires is a special purpose outdoor luminaire, integral model. Designed for highest efficiency in terms of more lumens at reduced wattages.

Product Description
• The luminaire body made of pre-coated sheet steel or alternatively heavy gauge CRCA sheet, effectively anti-rust treated.
• Opal High Transmission diffuser for glare free, uniform light distribution.
• Luminaire integrated with 30W LED.
• The lamp along with driver is housed at the top portion.
• Suitable for mounting to internally threaded pipe of designation M30.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4623-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• Elegance, Functionality.
• Environmental friendly.
• Quick installation and low assembly costs.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.

Area of Application

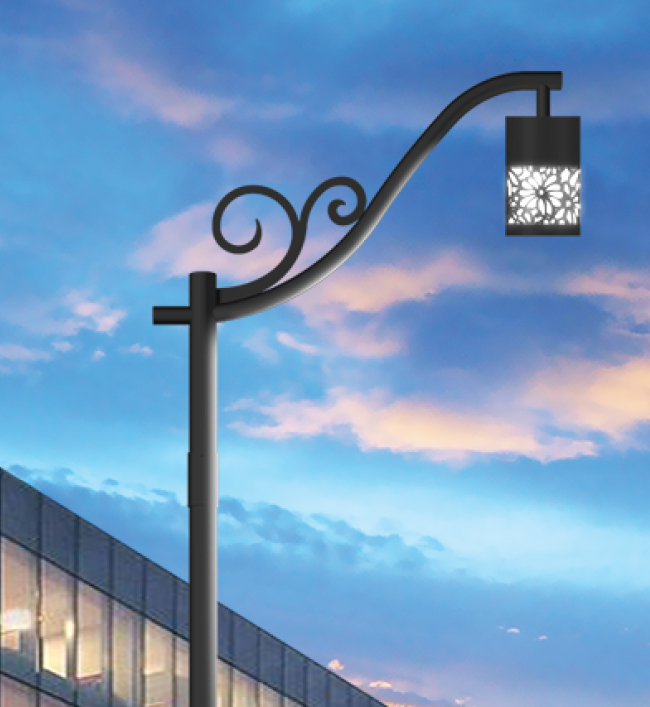

Illuminating parks, Smaller Roadways, Gardens, Private driveways, Residential Area Lighting.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black

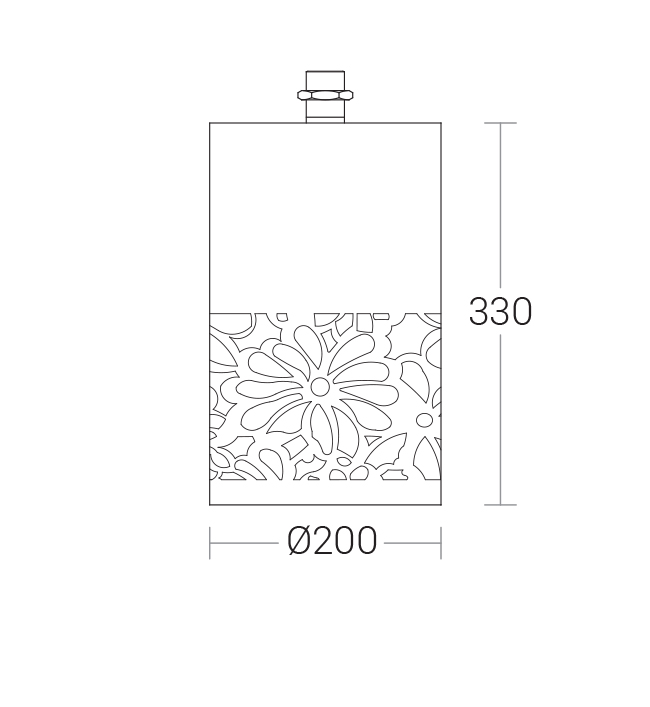

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-462330W LED WW,CW,NW, OpalØ200 x 330mmD44623.pdf
