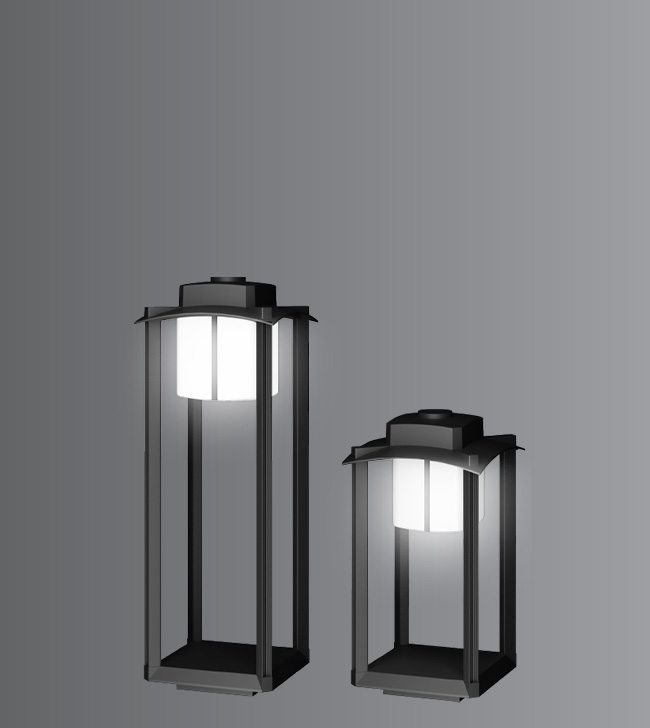

Cyrilla Bollard
Decorative bollard suitable for classical architecture,create a pleasant light distribution with a high degree of visual comfort.These luminaries offer shielded glare free illumination of ground surface and are perfect for illuminating entrances,footpaths as well as garden and landscape architecture.

Product Description
• Luminaire body made of pressure die-cast aluminium with extruded aluminium supporting arm and SS fasteners.
• Translucent polycarbonate diffuser.
• For optimum coordination with lighting situation,these luminaries can be supplied in two different mounting heights.
• Luminaire integrated with 12W LED.
• Die-cast aluminium mounting plate for bolting onto a foundation.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI ( Ra) : >80 (90 CRI - On Request).
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4737-CCT (Colour Temperature)
• Available CCT : 2700K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Robust design.
• Quick installation and low assembly costs.
• Dark sky compliant protects pedestrians from glare,in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

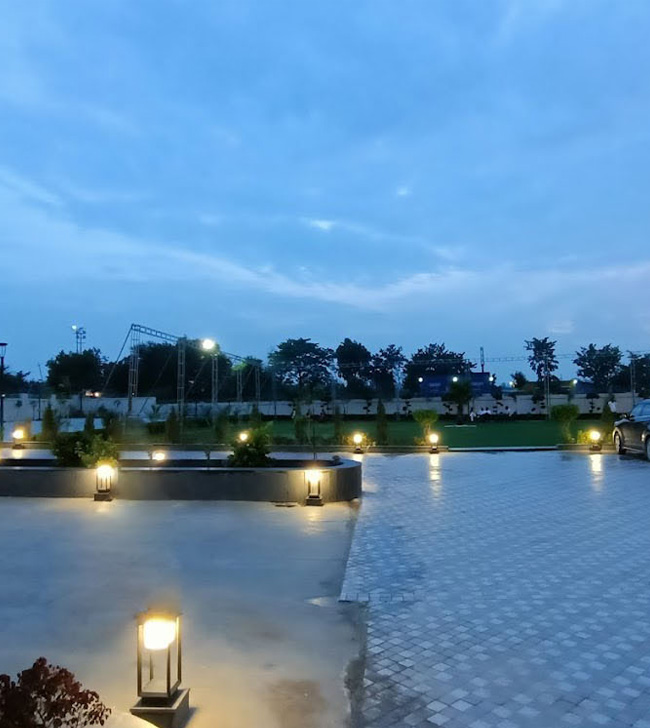

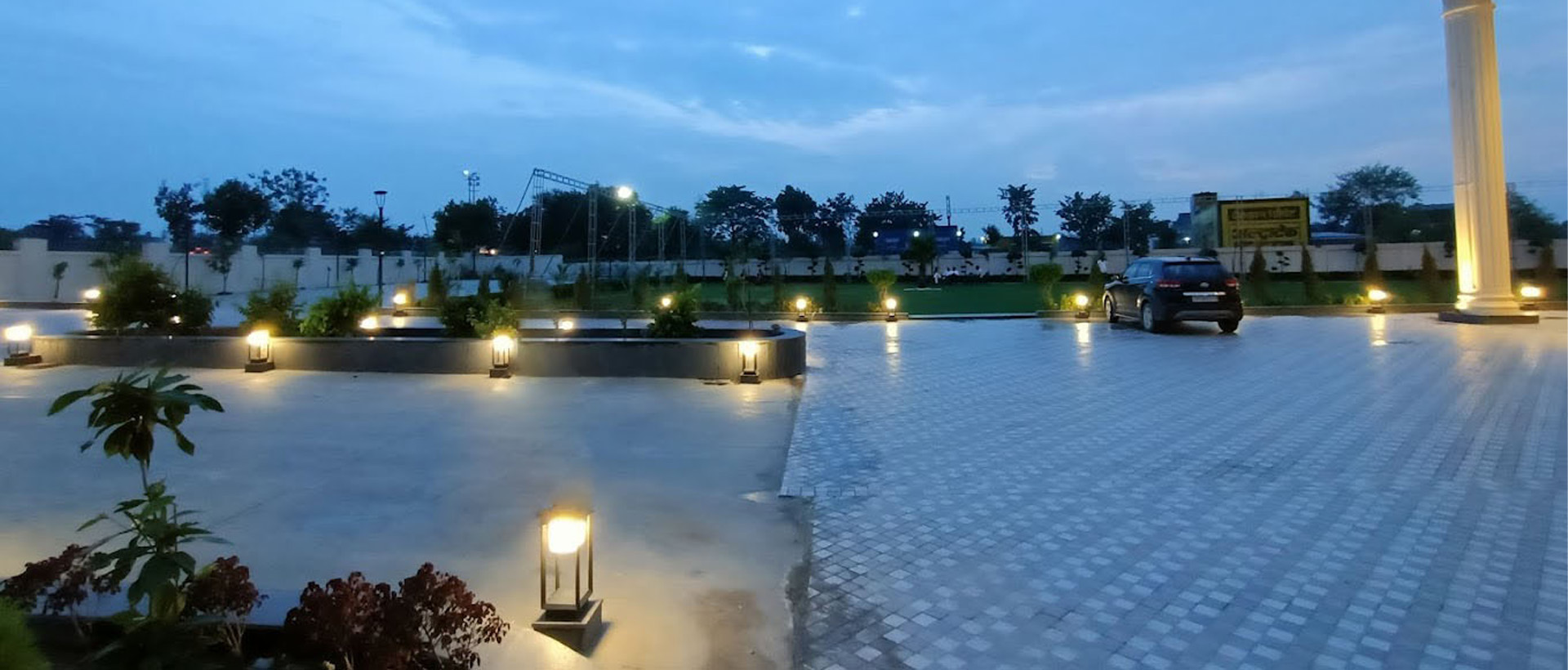

Suitable for Residential & Public areas for Illuminating Driveways, Pathways, Flowerbeds, Entrances, Squares, Gardens and as well as landscape architecture.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

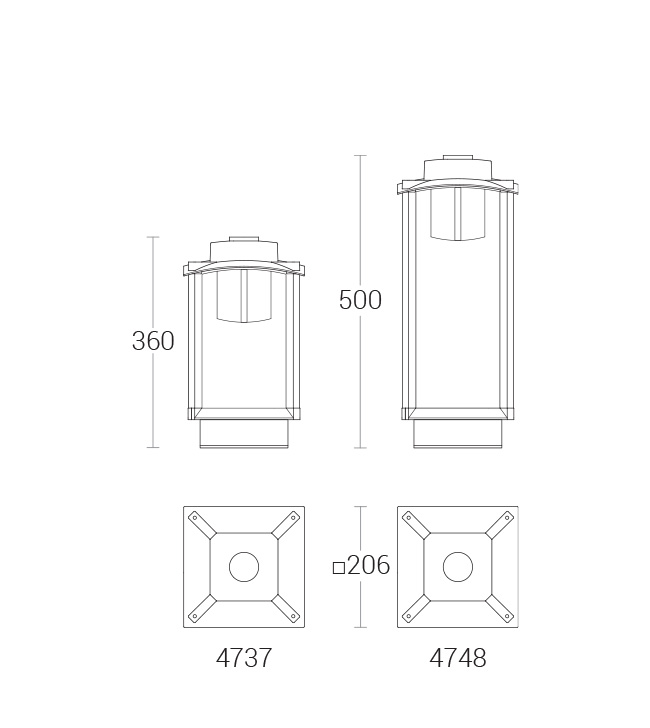

KL-473712W LED 2700K,3000K,4000K,6500K, Translucent PolycarbonateSq.206 x 335mmM36
Detailed Foundation Drawing
4737.pdf
KL-474812W LED 2700K,3000K,4000K,6500K, Translucent PolycarbonateSq.206 x 500mmM36
Detailed Foundation Drawing
4748.pdf
