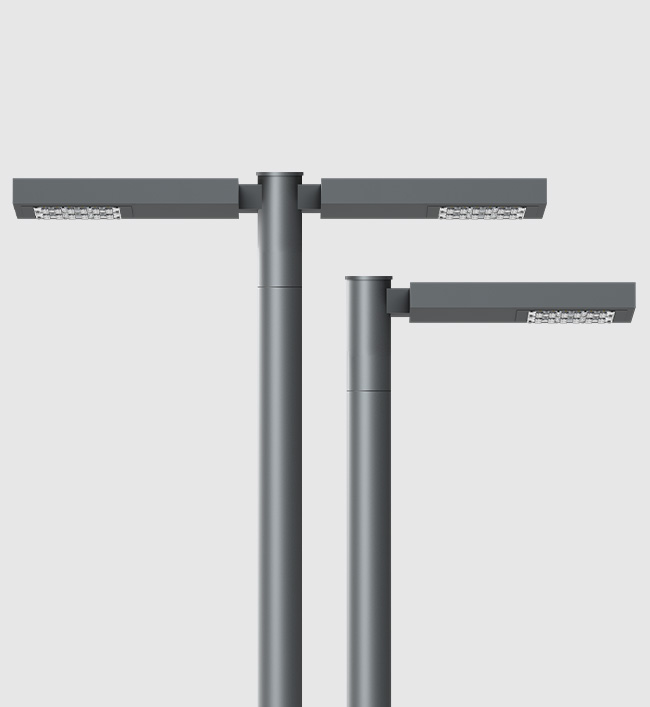

Spectra / Dual Arm Spectra
“Dual Spectra” pathway luminaire, is an innovative design options to provide visual integration with the environment. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation. Product offered asymmetrical light distribution.


Product Description
• Luminaire body made of extruded aluminium alloy (grade 6063) and non corrosive stainless steel fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 200W LED.
• Suitable for mounting on 76mm / 88.9mm OD pipe, 72mm / 91mm square pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : =70
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4435-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile, strong and stable with sound engineering.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

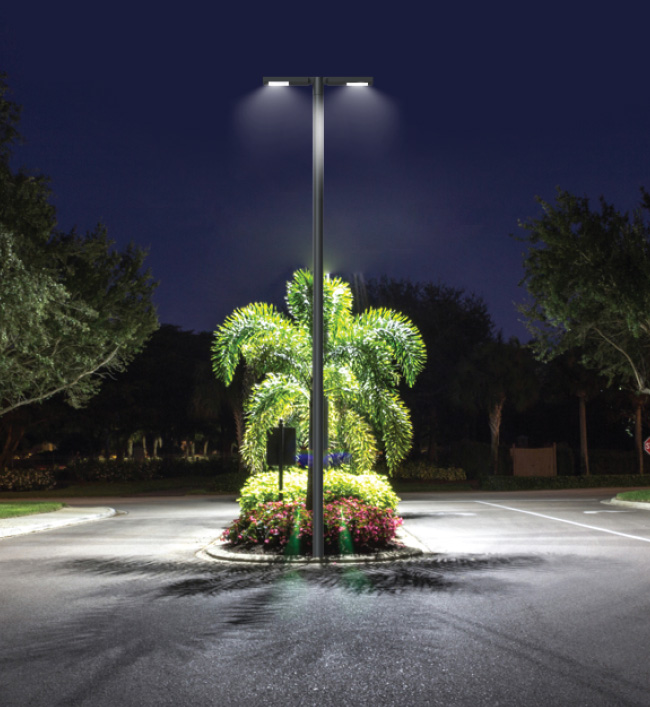

Street Lighting, Park Lighting, Expressways, Highways, Courtyards.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page

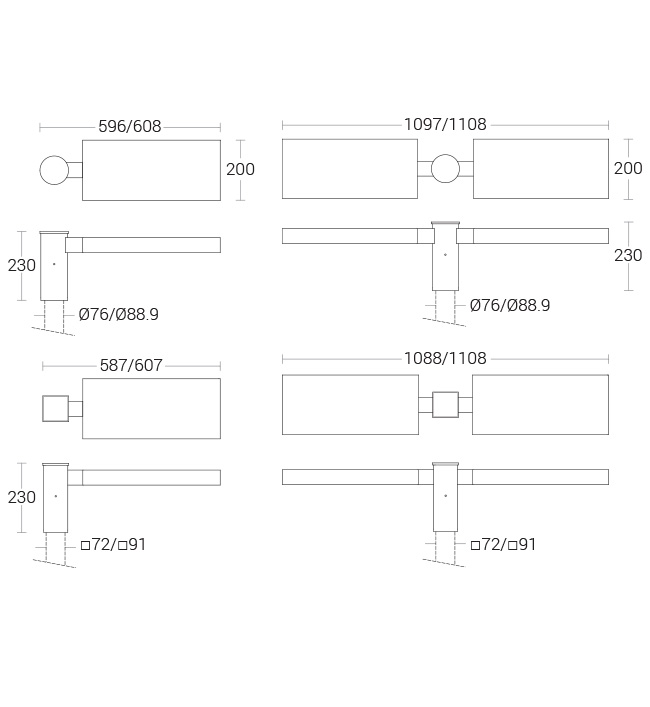

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-4434100W LED 2700K,3000K,4000K,5700K BA:Type III, Polycarbonate Optical LensD3:1097x200x230, D26:1108x200x230, D15:1088x200x230, D16:1108x200x230mmD3
D26
D15
D16
4434.pdf
KL-4434.txt
KL-4435200W LED 2700K,3000K,4000K,5700K BA:Type III, Polycarbonate Optical LensD3:1097x200x230, D26:1108x200x230, D15:1088x200x230, D16:1108x200x230mmD3
D26
D15
D16
4435.pdf
KL-4435.txt
KL-443250W LED 2700K,3000K,4000K,5700K BA:Type III, Polycarbonate Optical LensD3:596x200x230, D26:608x200x230, D15:587x200x230, D16:607x200x230mmD3
D26
D15
D16
KL-4432-BATYPEIII-WW.IES
KL-4432-BATYPEIII-CW.IES
KL-4432-BATYPEIII-NW.IES
KL-4432-BATYPEIII-WW.PDF
KL-4432-BATYPEIII-CW.PDF
KL-4432-BATYPEIII-NW.PDF
4432.pdf
KL-4432.txt
KL-4433100W LED 2700K,3000K,4000K,5700K BA:Type III, Polycarbonate Optical LensD3:596x200x230, D26:608x200x230, D15:587x200x230, D16:607x200x230mmD3
D26
D15
D16
4433.pdf
KL-4433.txt
KL-444950W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical Lens528 x 200 x 52mmKL-4449-BATYPEIII-WW.IES
KL-4449-BATYPEIII-CW.IES
KL-4449-BATYPEIII-NW .IES
KL-4449-BATYPEIII-WW.PDF
KL-4449-BATYPEIII-CW.PDF
KL-4449-BATYPEIII-NW .PDF
4449.pdf
