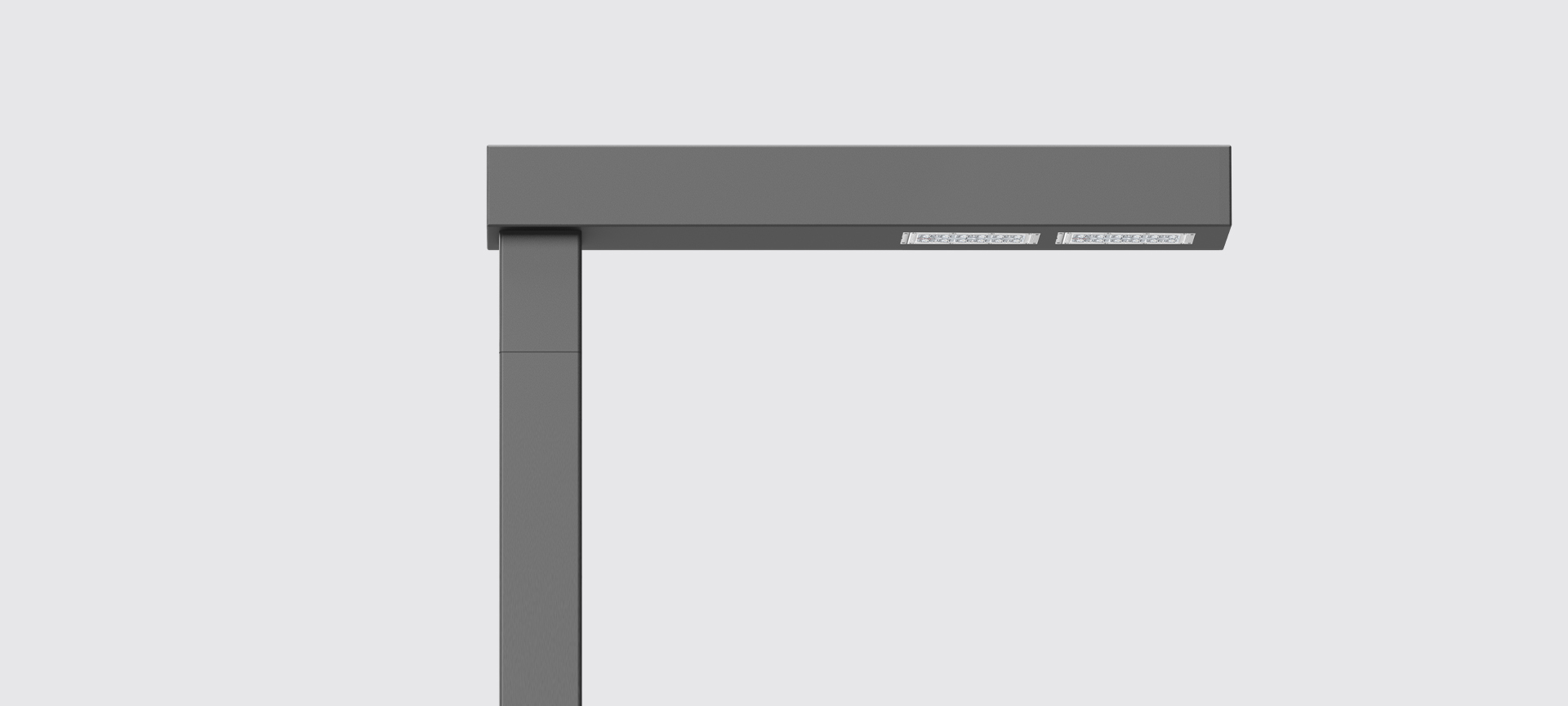

Duo Mega Polar / Dual Mega Polar - Vertical Mounting
Innovative Design options to provide Visual integration with the environment. High Brightness, LED Light source do not pose any environment risks. Designed for highest efficiency in terms of more lumens at reduced wattages contributing to a Greener World. Long life span with very low maintenance.

Product Description
• Luminaire body made of extruded aluminium can achieve high strength and corrosion resistance in various atmospheric conditions.
• Polycarbonate optical lens.

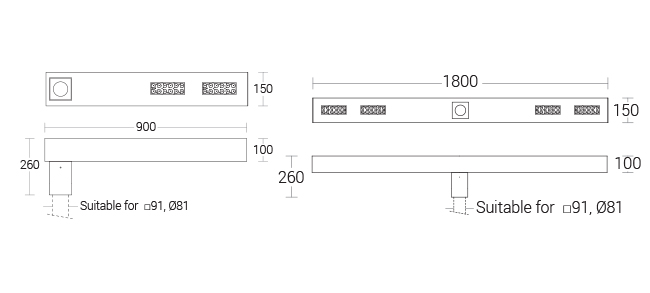

• Suitable for mounting on 81mm OD Pipe of 140mm height / 91mm square Pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4425-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K / 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile, strong and stable.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

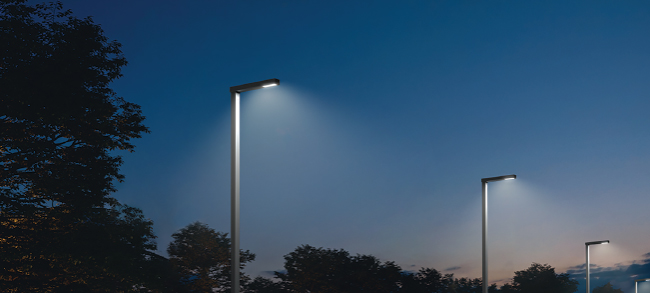

Street Lighting, Smaller Roadways, Expressways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-4427200W LED WW,NW,CW BA:Type III, Polycarbonate Optical Lens1800 x 150 x 260mm4427.pdf
KL-4427.txt
KL-4428240W LED WW,NW,CW BA:Type III, Polycarbonate Optical Lens1800 x 150 x 260mm4428.pdf
KL-4428.txt
KL-4425100W LED WW,NW,CW BA:Type III, Polycarbonate Optical Lens900 x 150 x 260mm4425.pdf
KL-4425.txt
KL-4426120W LED WW,NW,CW BA:Type III, Polycarbonate Optical Lens900 x 150 x 260mm4426.pdf
KL-4426.txt
