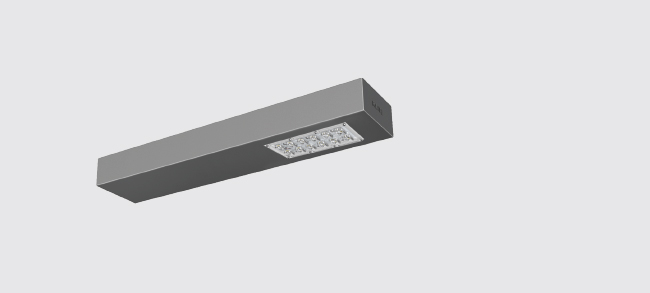

Polar - Wall Bracket
Surface mounted range of LED wall light is perfect fit for varied outdoor lighting applications.Designed to illuminate the wall and surface in front of wall and for light accents on vertical surfaces.
Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Product offered asymmetrical light distribution.

Product Description
• Luminaire body made of extruded aluminium (grade 6063) with aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 30W LED.
• Mounting bracket for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80.
• Suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4414-CCT (Colour Temperature)
• Available CCT : 2700K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile,strong and stable.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Commercial complex,Pathways in residential buildings & office complex,Residential area lighting.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

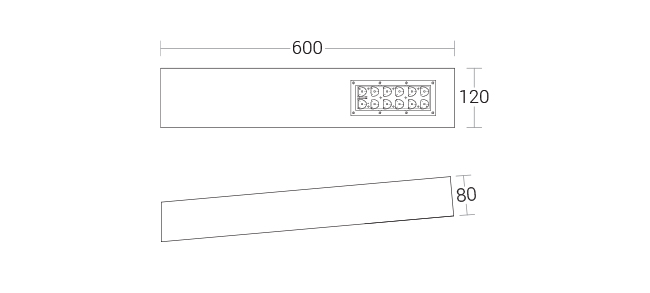

KL-441430W LED 3000K,4000K,5700K BA:Type II, Polycarbonate Optical Lens600 x 120 x 80mmW37
Detailed Foundation Drawing
KL-4414-BATYPEII-WW.IES
KL-4414-BATYPEII-CW.IES
KL-4414-BATYPEII-NW.IES
KL-4414-BATYPEII-WW.PDF
KL-4414-BATYPEII-CW.PDF
KL-4414-BATYPEII-NW.PDF
4414.pdf
KL-441550W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical Lens600 x 120 x 80mmW37
Detailed Foundation Drawing
KL-4415-BATYPEIII-WW.IES
KL-4415-BATYPEIII-CW.IES
KL-4415-BATYPEIII-NW.IES
KL-4415-BATYPEIII-WW.PDF
KL-4415-BATYPEIII-CW.PDF
KL-4415-BATYPEIII-NW.PDF
4415.pdf
KL-441660W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical Lens600 x 120 x 80mmW37
Detailed Foundation Drawing
4416.pdf
KL-4416.txt
