Angle Polar - Wall Bracket

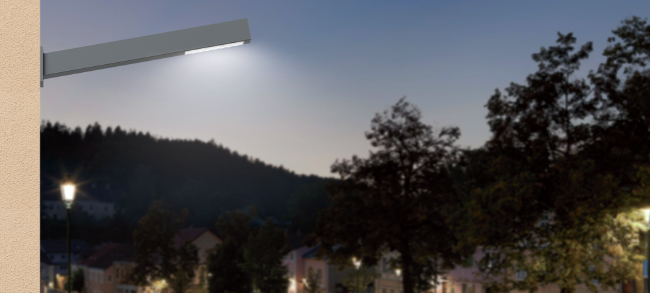

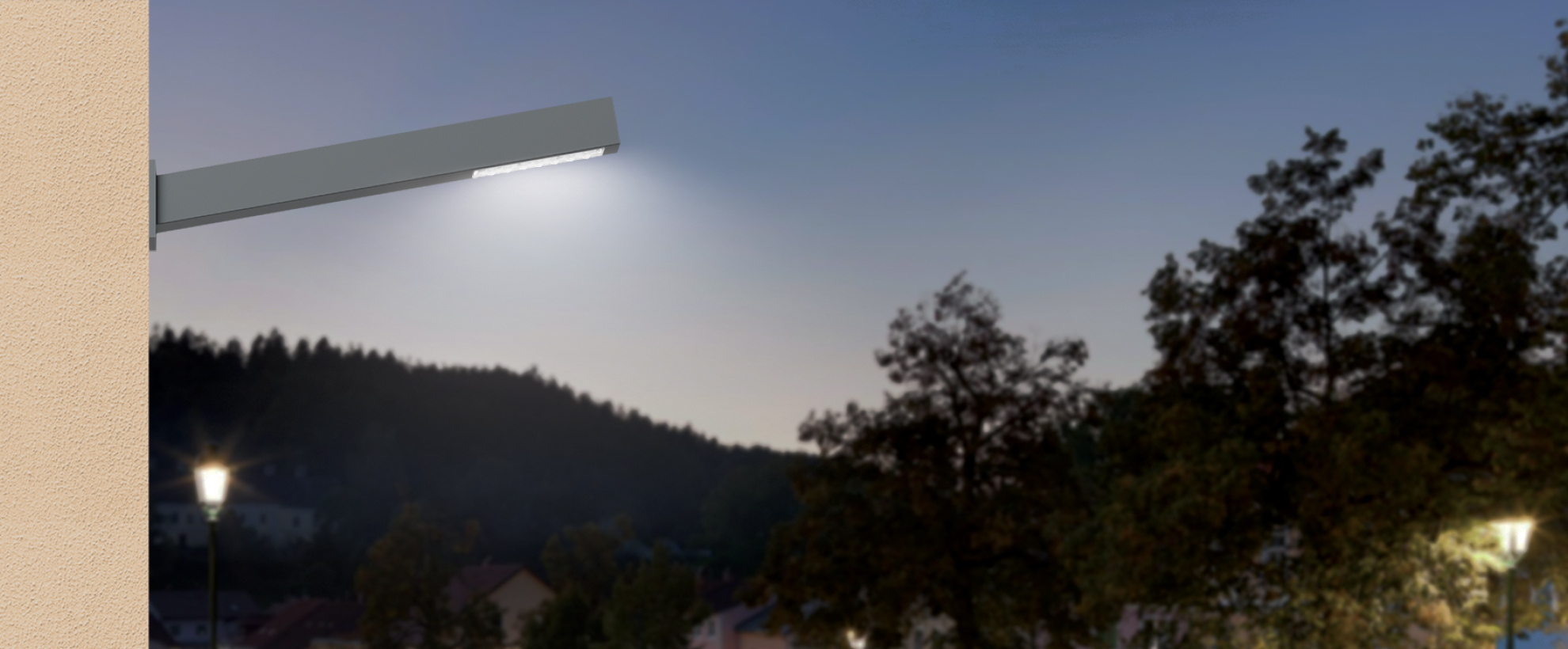

Surface mounted range of LED wall light is perfect fit for varied outdoor lighting applications. Designed to illuminate the wall and surface in front of wall and for light accents on vertical surfaces. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation. Product offered asymmetrical light distribution.

Product Description

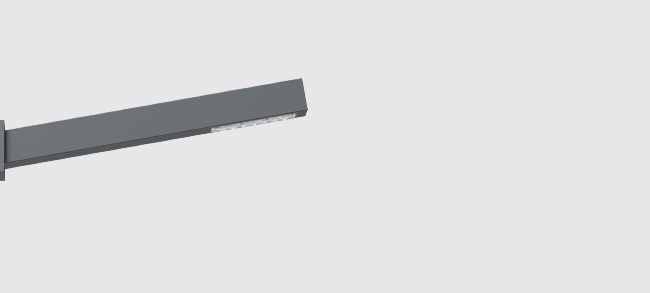

• Luminaire body made of extruded square aluminium (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Aluminium base for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the
power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4413-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile, strong and stable with sound engineering.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Commercial complex, Pathways in residential buildings & office complex, Residential area lighting.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

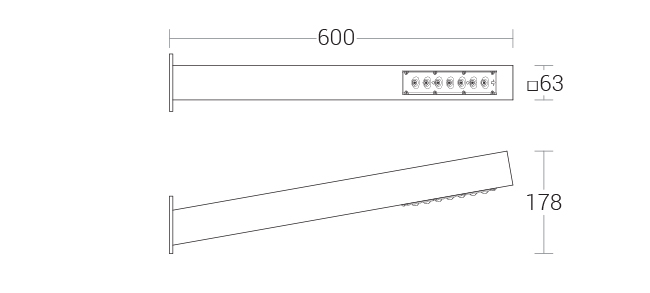

KL-441324W LED 3000K,4000K,5700K BA:Type III Medium, Polycarbonate Optical Lens600 x Sq.63 x 178mmW36
Detailed Foundation Drawing
KL-4413-BATypeIII-WW.IES
KL-4413-BATypeIII-CW.IES
KL-4413-BATypeIII-NW.IES
KL-4413-BATypeIII-WW.PDF
KL-4413-BATypeIII-CW.PDF
KL-4413-BATypeIII-NW.PDF
4413.pdf
KL-4413.txt
