Arc-L Series
Elegance of Simplicity

Arc-L & D Pendant Direct / Indirect luminaire, offers high quality, economical and easy to install modular lighting solutions. It offers premium lighting environment for sustainable Offices, Educational institutions, Retail and General areas. High-performance optic for maximum light efficiency and glare controlled light distribution with low UGR.

Downloads
Catalogue Page

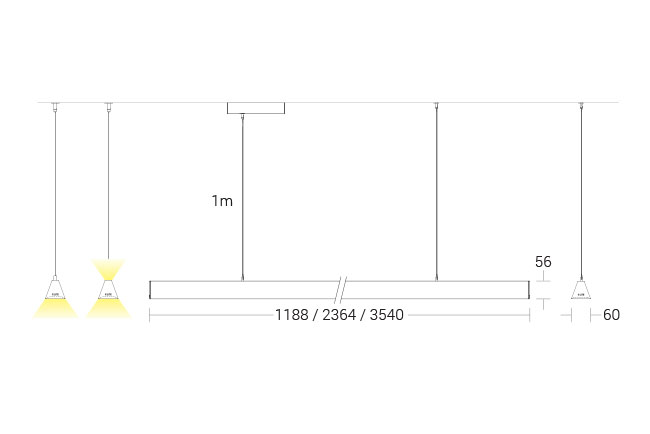

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-3477Upto 40W LED 2700K,3000K,4000K,5700K BA:50°, Polycarbonate1188 x 60 x 56mm3477.pdf
KL-3478Upto 80W LED 2700K,3000K,4000K,5700K BA:50°, Polycarbonate2364 x 60 x 56mm3478.pdf
KL-3479Upto 120W LED 2700K,3000K,4000K,5700K BA:50°, Polycarbonate3540 x 60 x 56mm3479.pdf
KL-3429Upto 40W & 15W LED 2700K,3000K,4000K,5700K BA:50°, Polycarbonate1188 x 60 x 56mm3429.pdf
KL-3439Upto 80W & 30W LED 2700K,3000K,4000K,5700K BA:50°, Polycarbonate2364 x 60 x 56mm3439.pdf
KL-3440Upto 120W & 45W LED 2700K,3000K,4000K,5700K BA:50°, Polycarbonate3540 x 60 x 56mm3440.pdf
