Line n Dot Series
Minimalistic, yet impressive

Line ’n’ dot offers new application opportunities for a modern and sophisticated look for any type of interior applications, including commercial spaces, Private sector, Hospitality, Museums and other similar areas.

It gives a minimalistic and elegant touch to ceilings keeping a clean look. Specially developed and designed optical lenses deliver optimal wide (general) or narrow (concentrated) light distribution to adapt the lighting to specific needs with UGR<12.

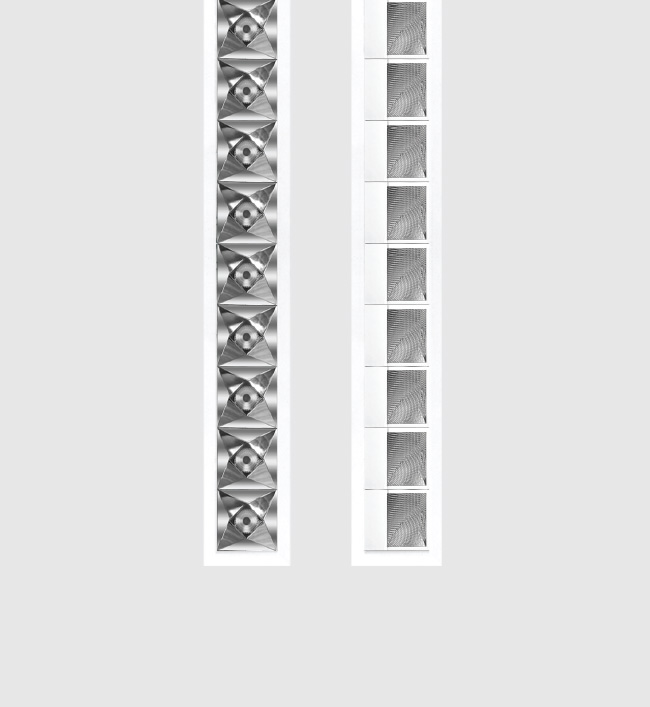

Linear downlight
Enhance contrast for horizontal surfaces
High-purified die-cast housing, integrated with innovative vaccum aluminium plated chrome finish antiglare
UGR<12.

Linear Wallwasher
Linear Wallwasher equipped with a specially developed asymmetric lens for excellent uniform wallwashing distribution.

Linear Down light
Modular recessed downlight with UGR<12. Available in one, three, four, five, nine & ten dots. Line’n’Dot provides the best light output for indoor spaces that require a high visual comfort.

Downloads
Catalogue Page

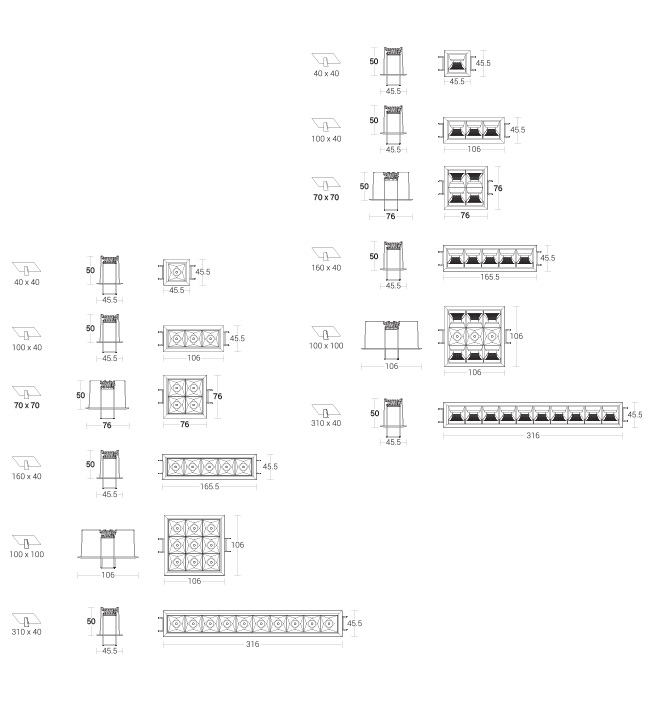

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-337218W LED 2700K,3000K,4000K,5700K BA:12°,20°,34°,48°,60°C.O.D : 100 x 100mmKL-3372-BA12D-NW.IES
KL-3372-BA20D-NW.IES
KL-3372-BA34D-NW.IES
KL-3372-BA48D-NW.IES
KL-3372-BA12D-NW.PDF
KL-3372-BA20D-NW.PDF
KL-3372-BA34D-NW.PDF
KL-3372-BA48D-NW.PDF
KL-33796W LED 2700K,3000K,4000K,5700K BA:12°,20°,34°,48°,60°C.O.D : 100 x 40mmKL-3379-BA12D-NW.IES
KL-3379-BA20D-NW.IES
KL-3379-BA34D-NW.IES
KL-3379-BA48D-NW.IES
KL-3379-BA12D-NW.PDF
KL-3379-BA20D-NW.PDF
KL-3379-BA34D-NW.PDF
KL-3379-BA48D-NW.PDF
KL-337112W LED 2700K,3000K,4000K,5700K BA:12°,20°,34°,48°,60°C.O.D : 160 x 40mmKL-3371-BA--NW.IES
KL-3371-BA--NW.IES
KL-3371-BA--NW.IES
KL-3371-BA--NW.IES
KL-3371-BA--NW.IES
KL-3371-BA--NW.PDF
KL-3371-BA--NW.PDF
KL-3371-BA--NW.PDF
KL-3371-BA--NW.PDF
KL-3371-BA--NW.PDF
KL-337324W LED 2700K,3000K,4000K,5700K BA:12°,20°,34°,48°,60°C.O.D : 310 x 40mmKL-3373-BA12D-2700K.IES
KL-3373-BA20D-2700K.IES
KL-3373-BA34D-2700K.IES
KL-3373-BA48D-2700K.IES
KL-3373-BA60D-2700K.IES
KL-3373-BA12D-2700K.PDF
KL-3373-BA20D-2700K.PDF
KL-3373-BA34D-2700K.PDF
KL-3373-BA48D-2700K.PDF
KL-3373-BA60D-2700K.PDF
KL-33693W LED 2700K,3000K,4000K,5700K BA:12°,20°,34°,48°,60°C.O.D : 40 x 40mmKL-3369-BA12D-NW.IES
KL-3369-BA20D-NW.IES
KL-3369-BA34D-NW.IES
KL-3369-BA48D-NW.IES
KL-3369-BA12D-NW.PDF
KL-3369-BA20D-NW.PDF
KL-3369-BA34D-NW.PDF
KL-3369-BA48D-NW.PDF
KL-337010W LED 2700K,3000K,4000K,5700K BA:12°,20°,34°,48°,60°C.O.D : 70 x 70mmKL-3370-BA34-WW.IES
KL-3370-BA12D-NW.IES
KL-3370-BA20D-NW.IES
KL-3370-BA34D-NW.IES
KL-3370-BA48D-NW.IES
KL-3370-BA34-WW.PDF
KL-3370-BA12D-NW.PDF
KL-3370-BA20D-NW.PDF
KL-3370-BA34D-NW.PDF
KL-3370-BA48D-NW.PDF
KL-337718W LED 3000K,4000K,5700K BA:12°,20°,34°,48°,60° / WallwasherC.O.D : 100 x 100mmKL-3377-BA--NW.IES
KL-3377-BA--NW.PDF
KL-33816W LED 3000K,4000K,5700KC.O.D : 100 x 40mmKL-3381-BA--NW.IES
KL-3381-BA--NW.PDF
KL-337612W LED 3000K,4000K,5700KC.O.D : 160 x 40mmKL-3376-BA--NW.IES
KL-3376-BA--NW.PDF
KL-337824W LED 2700K,3000K,4000K,5700KC.O.D : 310 x 40mm
KL-33743W LED 3000K,4000K,5700KC.O.D : 40 x 40mmKL-3374-BA--NW.IES
KL-3374-BA--NW.PDF
KL-337510W LED 3000K,4000K,5700KC.O.D : 70 x 70mmKL-3375-BA--NW.IES
KL-3375-BA--NW.PDF
