Trioscape

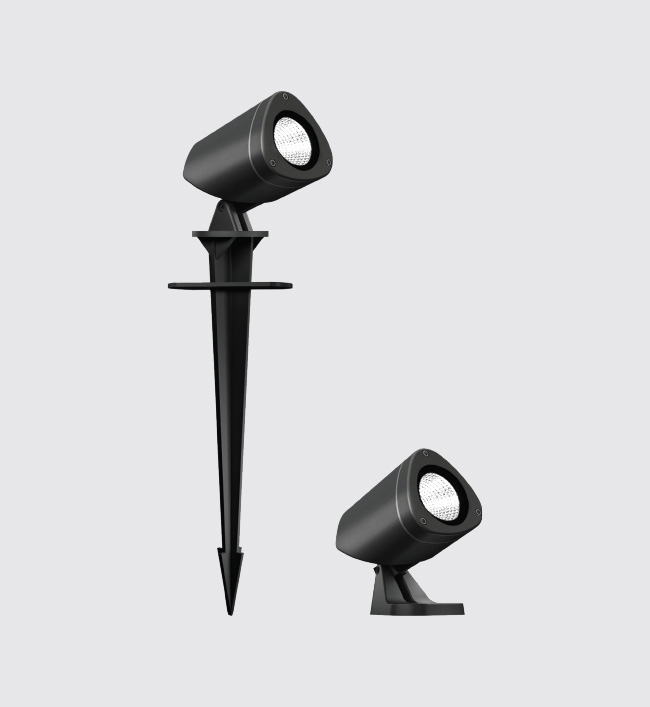

LED compact spot light luminaires designed to provide directional light. The luminaires comes with a connecting cable and an earth spike for portable installation or bracket for permanent installation on a wall, under a ceiling or on a column.

Product Description
• Luminaire housing & bracket made of die cast aluminium, aluminium & SS fasteners.
• Clear tempered safety glass.
• Mounting earth spike or die-cast bracket arrangement to facilitate easy installation at any desired location.
• Swivel range of 0°-90°.
• Luminaire supplied with one metre cable length and a IP67 connector.
• Silicone gasket.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 (90 CRI - On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-7052-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Clear glass in the front with continuous rubber gasket to ensure adequate sealing against ingress of moisture, dust, insects etc.,
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

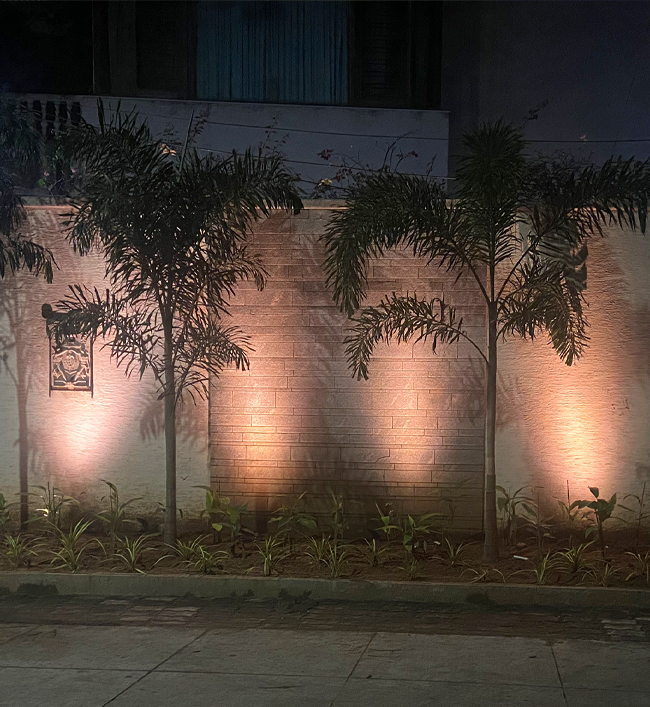

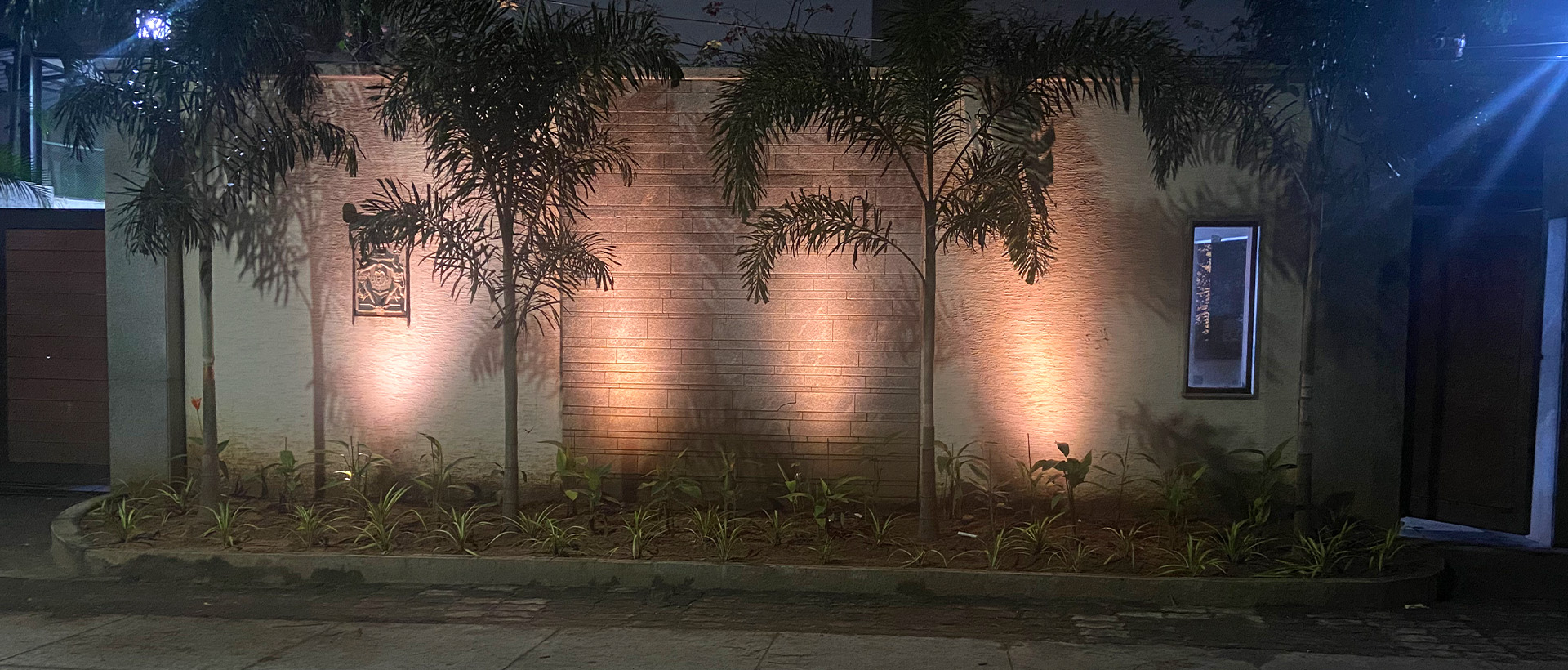

Pathways, Parks, Sculptures, Gardens, Structures and Landscape lighting.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black

Downloads
Catalogue Page

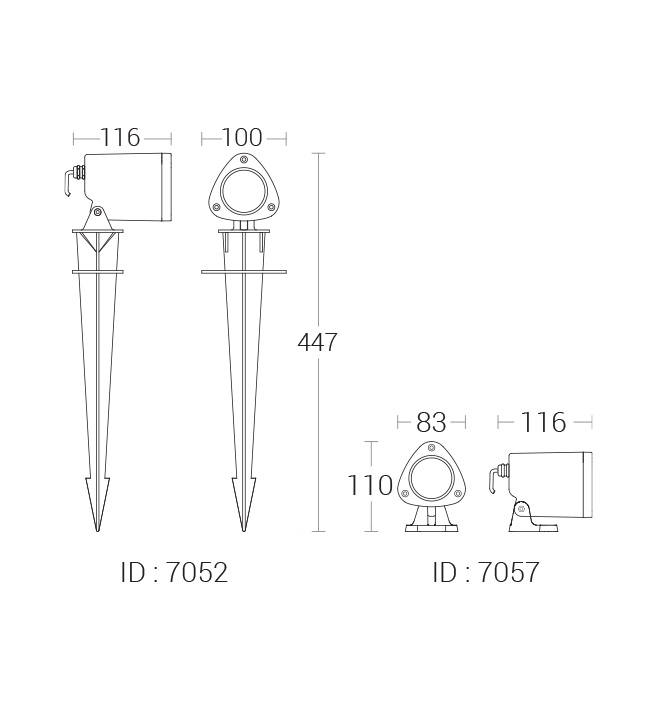

IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description
KL-70527W LED WW,NW BA:25°,40°,15°, Clear tempered glass100 x 117 x 447mmKL-7052-BA25°-WW.IES
KL-7052-BA25°-WW.PDF
7052.pdf
KL-70577W LED WW,NW BA:25°,40°,15°, Clear tempered glass83 x 116 x 110mmKL-7057-BA25°-WW.IES
KL-7057-BA25°-WW.PDF
7057.pdf
KL-7057.txt
