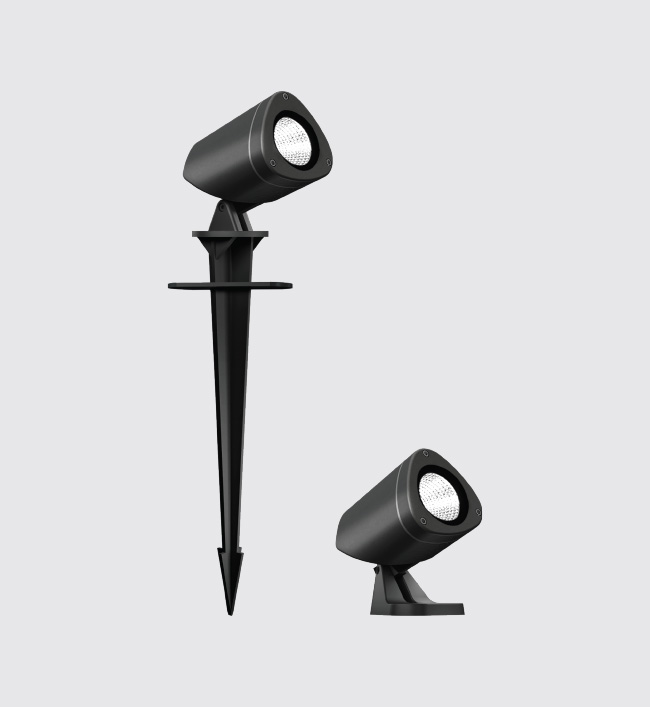

LED compact spot light luminaires designed to provide directional light.The luminaires comes with a connecting cable and an earth spike for portable installation or bracket for permanent installation on a wall, under a ceiling or on a column.

Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive stainless steel fasteners.
• Clear toughened glass.
• Mounting earth spike or die-cast bracket arrangement to facilitate easy installation at any desired location.
• Swivel range of 0°-90°.
• Luminaire supplied with 0.5 metre cable length and a IP67 connector.
• Silicone gasket.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 (90 CRI - On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-6998-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K (CW on request)

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Clear glass in the front with continuous rubber gasket to ensure adequate sealing against ingress of moisture, dust, insects etc.,
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

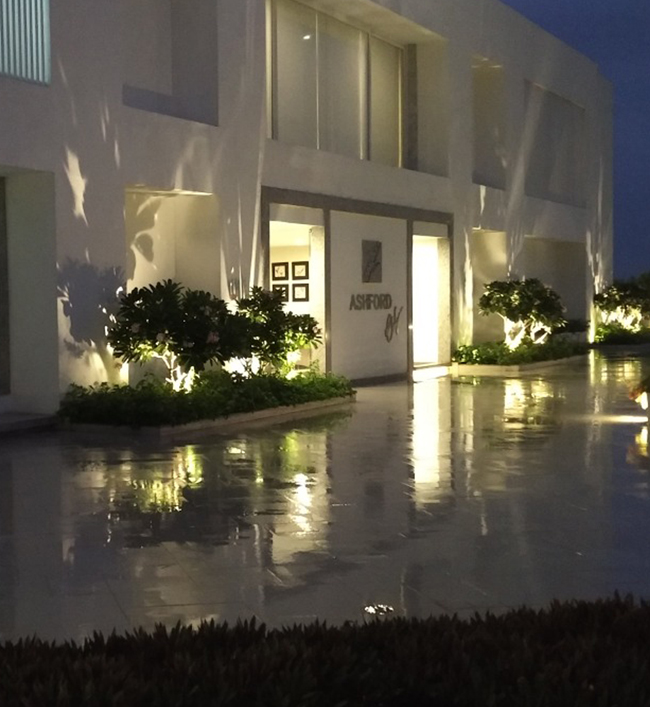

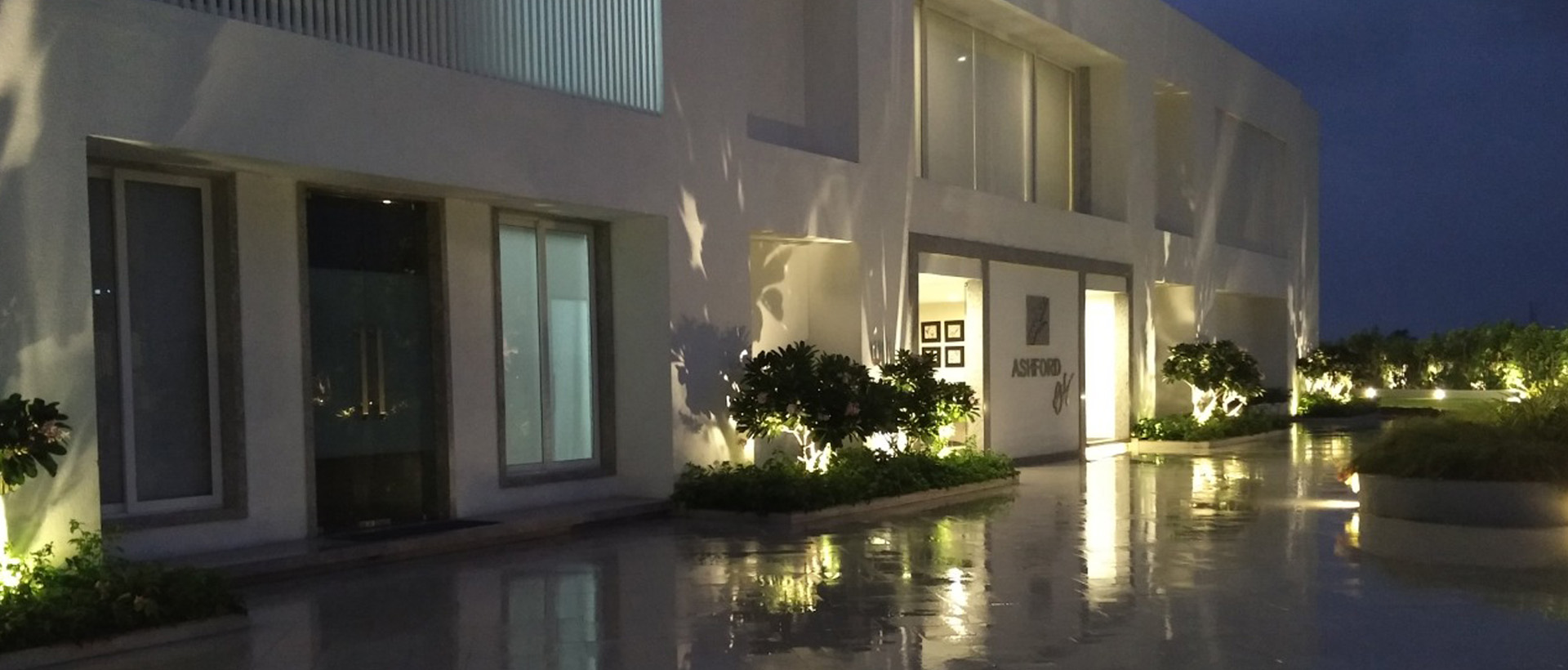

Pathways, Parks, Sculptures, Gardens, Structures and Landscape lighting.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description
KL-8275Tree Strap Accessory1000mm8275.pdf
KL-8349Nebula - Split Version - Spike Mount Accessory1150mm8349.pdf
KL-8336Nebula - Standard Version - Floor Mount Accessory700mm8336.pdf
KL-8337Nebula - Standard Version - Spike Mount Accessory990mm8337.pdf
KL-8343Tree Strap Clamp Accessory60 x 30 x 10mm8343.pdf

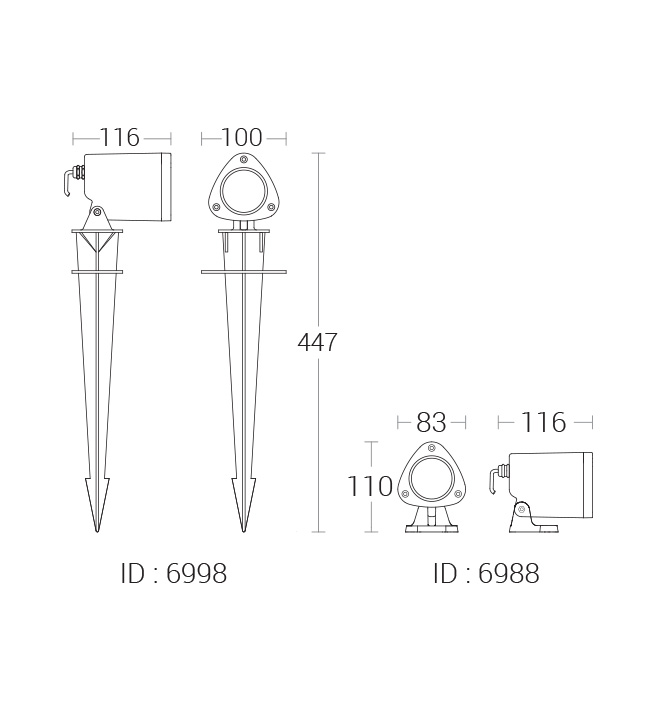

KL-69881 x 3W LED 2700K,3000K,4000K BA:25°,40°,15°, Clear toughened glass83 x 116 x 110mmKL-6988-BA40°-WW.IES
KL-6988-BA40°-NW .IES
KL-6988-BA40°-NW .PDF
KL-69981 x 3W LED 2700K,3000K,4000K BA:25°,40°,15°, Clear toughened glass100 x 116 x 447mmKL-6998-BA40°-WW.IES
KL-6998-BA25°-NW .IES
KL-6998-BA25°-NW .PDF
