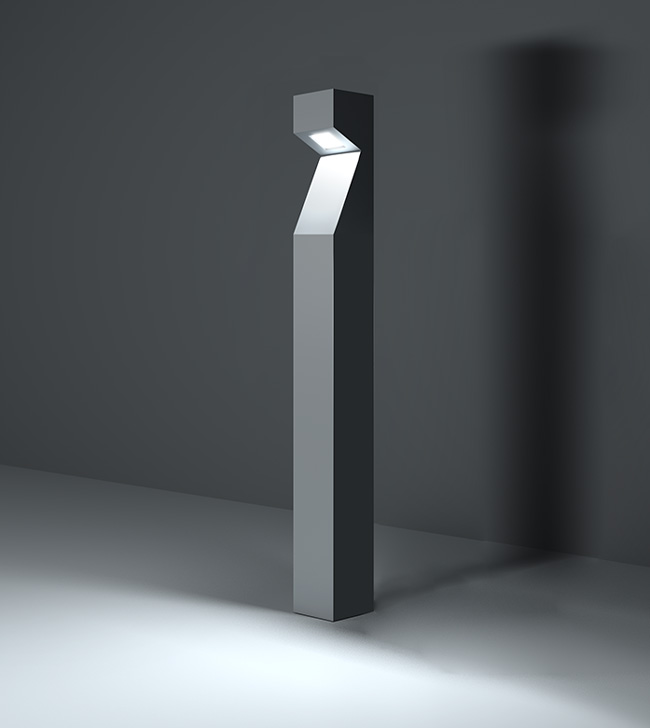

Polar Quad Asy Bollard
A decorative LED bollards designed with single side light output to provide soft, flat beam light distribution. A sleek minimalist shape provides distinctive lighting effects by night and decorative urban effect during the day. Bollard luminaires contribute to safety by illuminating pathways and other open spaces.

Product Description
• Luminaire body made of square aluminium tube (grade 6063) with aluminium components and SS fasteners.
• For optimum coordination with lighting situation, these luminaires can be supplied in two different mounting heights.
• Lamp compartment encased in polycarbonate optical cover.
• Luminaire integrated with 12W LED.
• Silicone gasket.
• Mounting plate die cast aluminium double powder coat with an anchorage unit and stainless steel fixing screws.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4729-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• Corrosion resistant and Maintenance free.
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

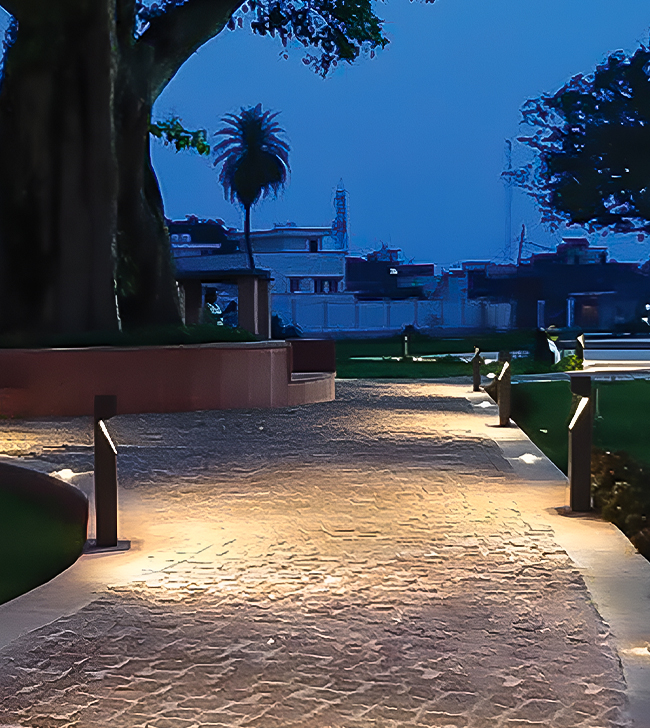

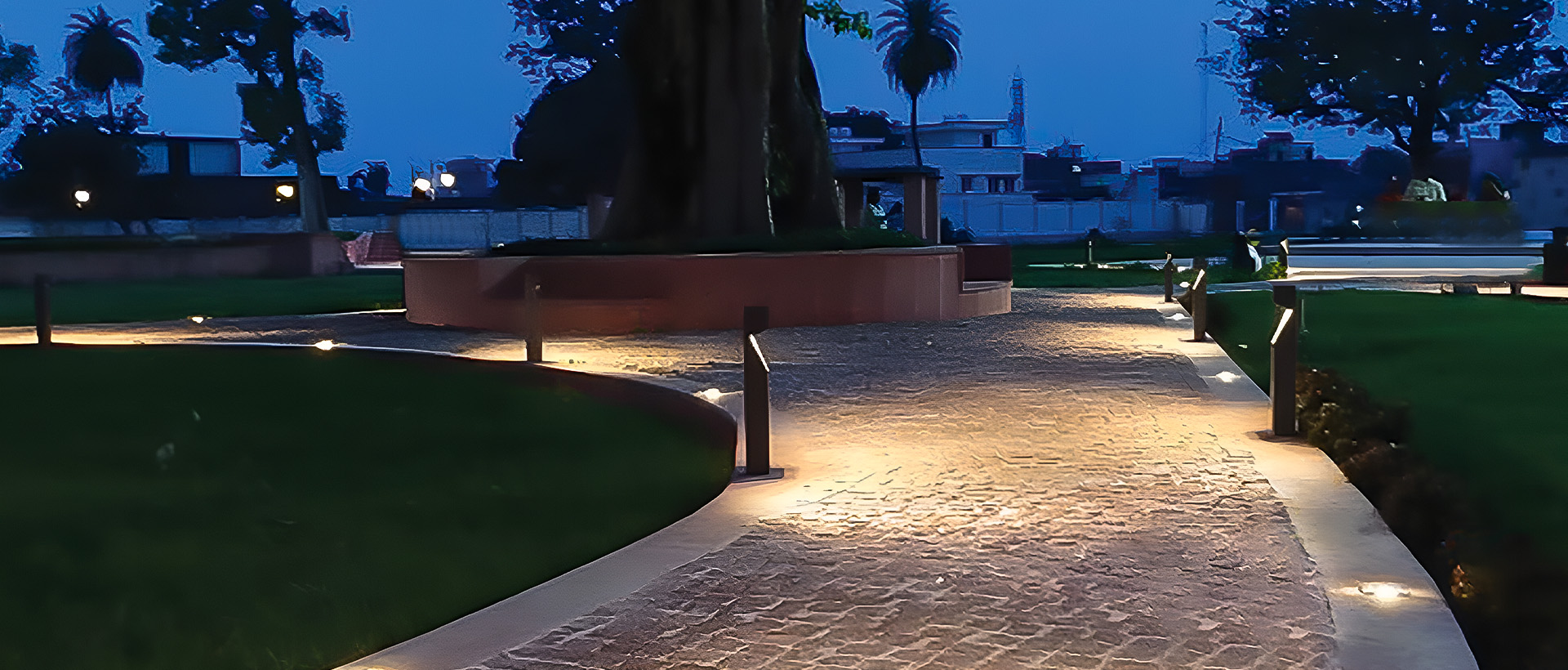

Suitable for Residential & Public areas for Illuminating Driveways, Pathways, Flowerbeds, Entrances, Squares, Gardens and as well as landscape architecture.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black

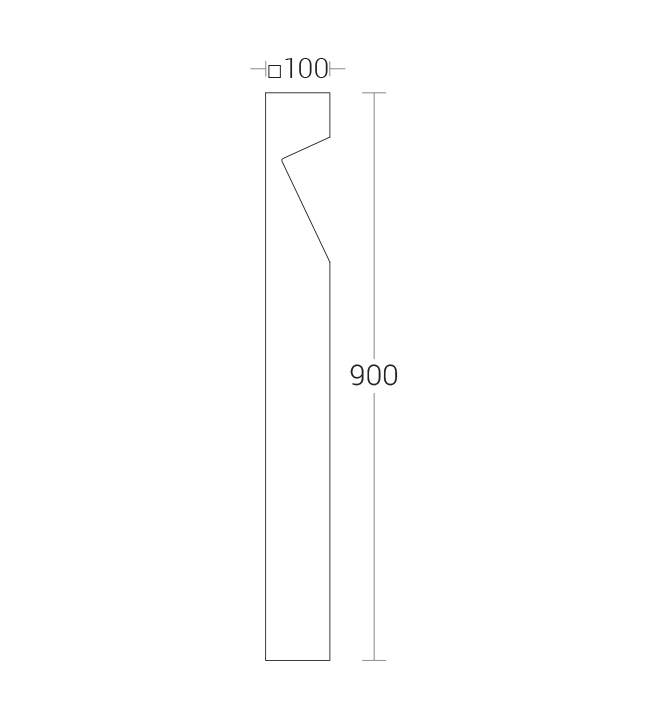

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-472912W LED WW,NW,CW BA:Type IV, Clear Polycarbonate Optical CoverSq.100 x 1000mmM37
Detailed Foundation Drawing
KL-4729-BA--WW.IES
KL-4729-BA--WW.PDF
4729.pdf
KL-4729.txt
KL-473012W LED WW,NW,CW BA:Type IV, Clear Polycarbonate Optical CoverSq.100 x 700mmM37
Detailed Foundation Drawing
KL-4730-BA--WW.IES
KL-4730-BA--WW.PDF
4730.pdf
KL-4730.txt
