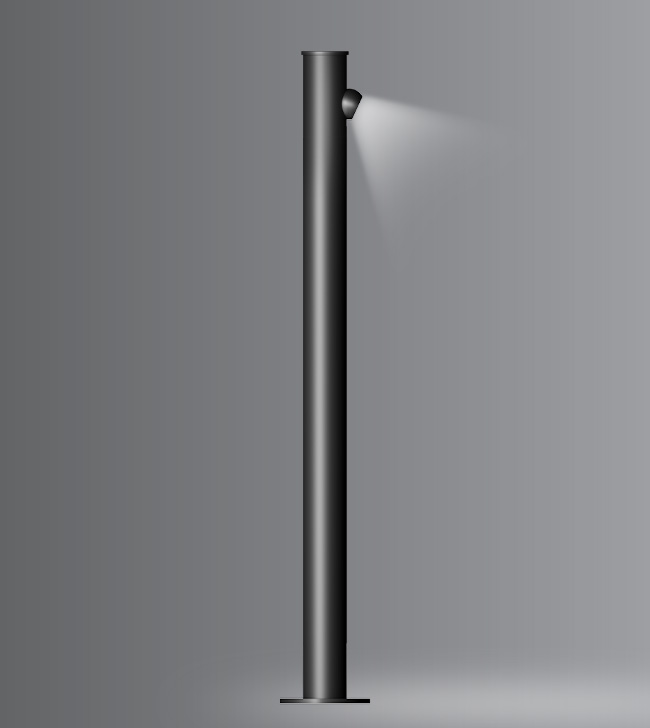

Bamboo Bollard
These flower bed luminaire, create a pleasant light distribution with a high degree of visual comfort. These luminaries offer shielded glare free illumination of ground surface and are perfect for illuminating entrances, footpaths as well as garden and landscape architecture.

Product Description
• Luminaire made of extruded aluminium alloy (grade 6063) with die-cast aluminium components and non corrosive SS fasteners.
• Toughened Clear Glass.
• Silicone gasket
• Aluminium mounting plate for bolting onto a foundation. Luminaire can be aligned on the mounting plate around 360°.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 ( 90 CRI - On Request )
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4707-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

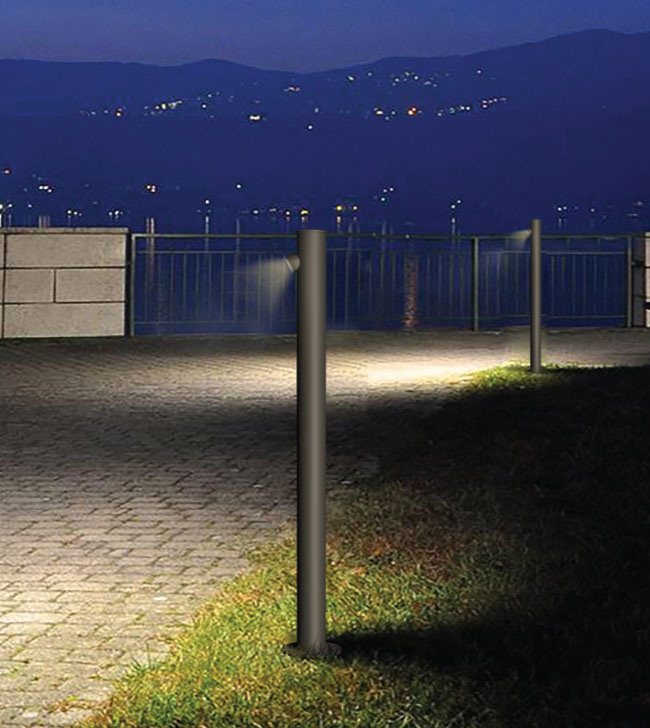

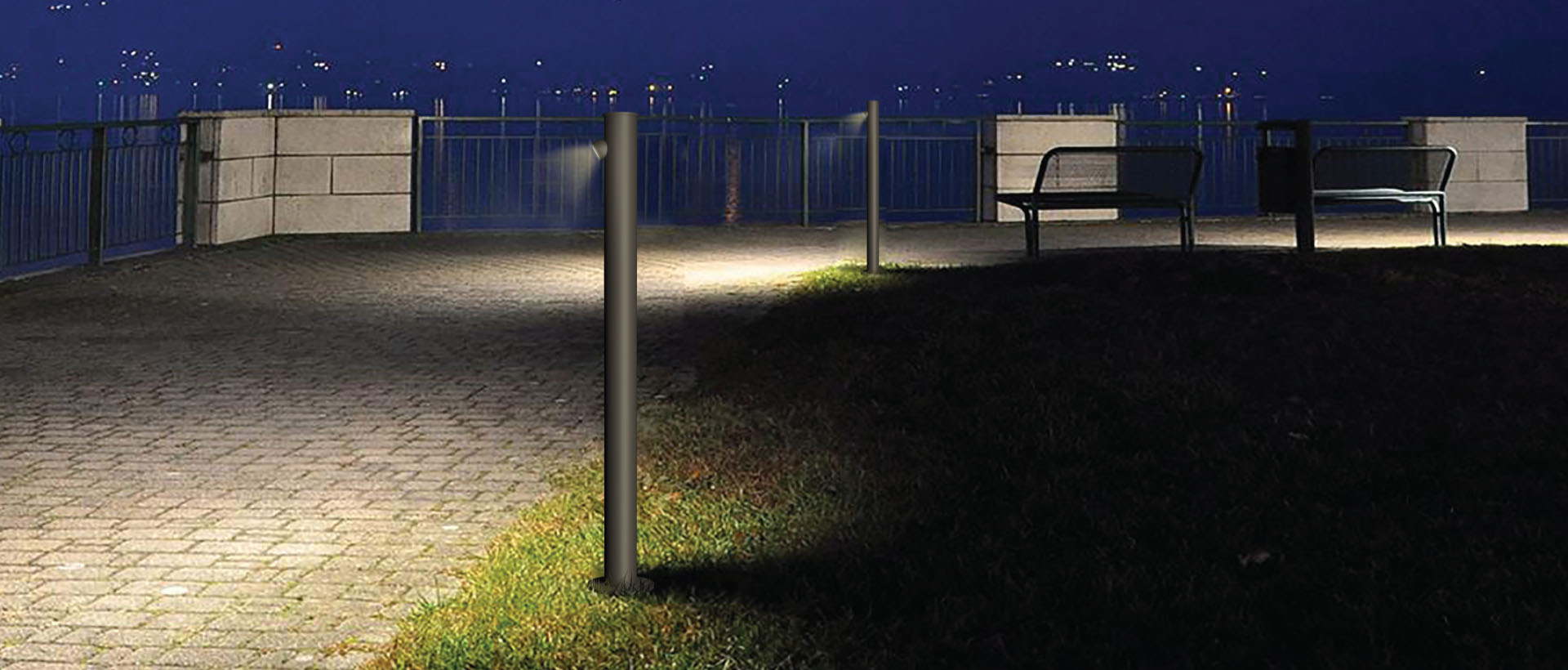

Suitable for Residential & Public areas for Illuminating Driveways, Pathways, Flowerbeds, Entrances, Squares, Gardens and as well as landscape architecture.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey (RAL : 7016)
• Jet black (RAL : 9005)
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

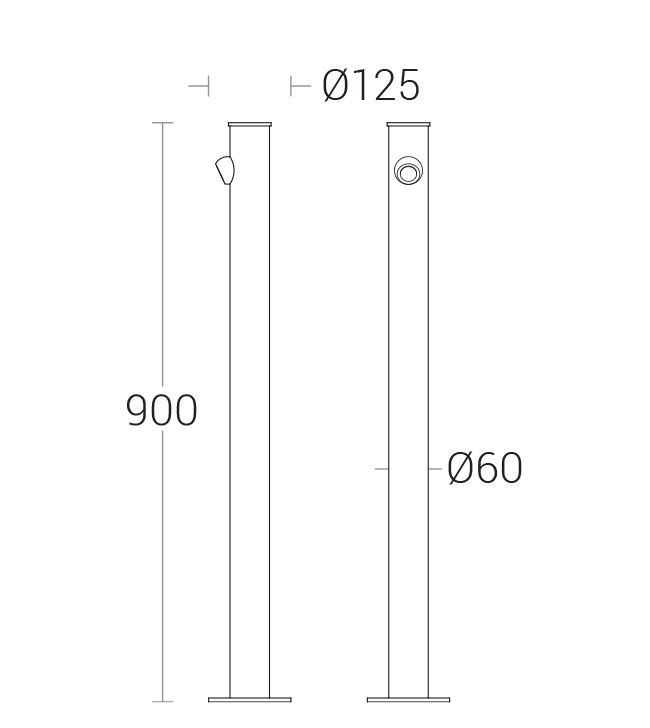

KL-47076W LED WW,NW,CW, Toughened Clear GlassØ125 x 1000mmM29
Detailed Foundation Drawing
KL-4707.IESKL-4707.PDF4707.pdf
KL-46956W LED WW,NW,CW, Toughened Clear GlassØ125 x 700mmM29
Detailed Foundation Drawing
KL-4695.IESKL-4695.PDF4695.pdf
