Diva Deep Square
Diva Deep Square recess mounted range of LED ceiling lights are a perfect fit for varied lighting applications. The die cast aluminium housing is ideal for better thermal management. High lumen output / Different wattage & CCT options make this luminaire versatile for superior glare free indoor lighting solutions.

Product Description
• LED ceiling recessed back-lit panel light - Indoor luminaire with soft uniform Light distribution.
• Luminaire made of die-cast aluminium for better thermal management.
• High efficiency diffuser for glare free, uniform light distribution.
• High lumen output
• High PF constant current LED driver with surge and thermal protection.
• Cable entries for through-wiring of mains supply cable.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-3323-CCT ( Colour Temperature )
• Available CCT : 3000K, 4000K, 6000K.

Product Benefits
• Flexible deployment options with a wide spectrum of applications.
• Quick & simple installation.
• Diffuser upto 85% transmission level for better efficiency and higher lumens output.

Area of Application

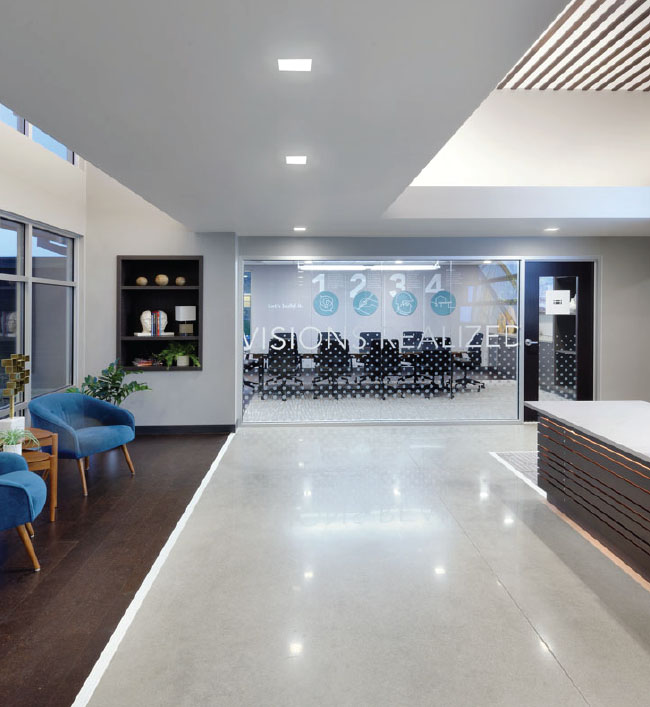

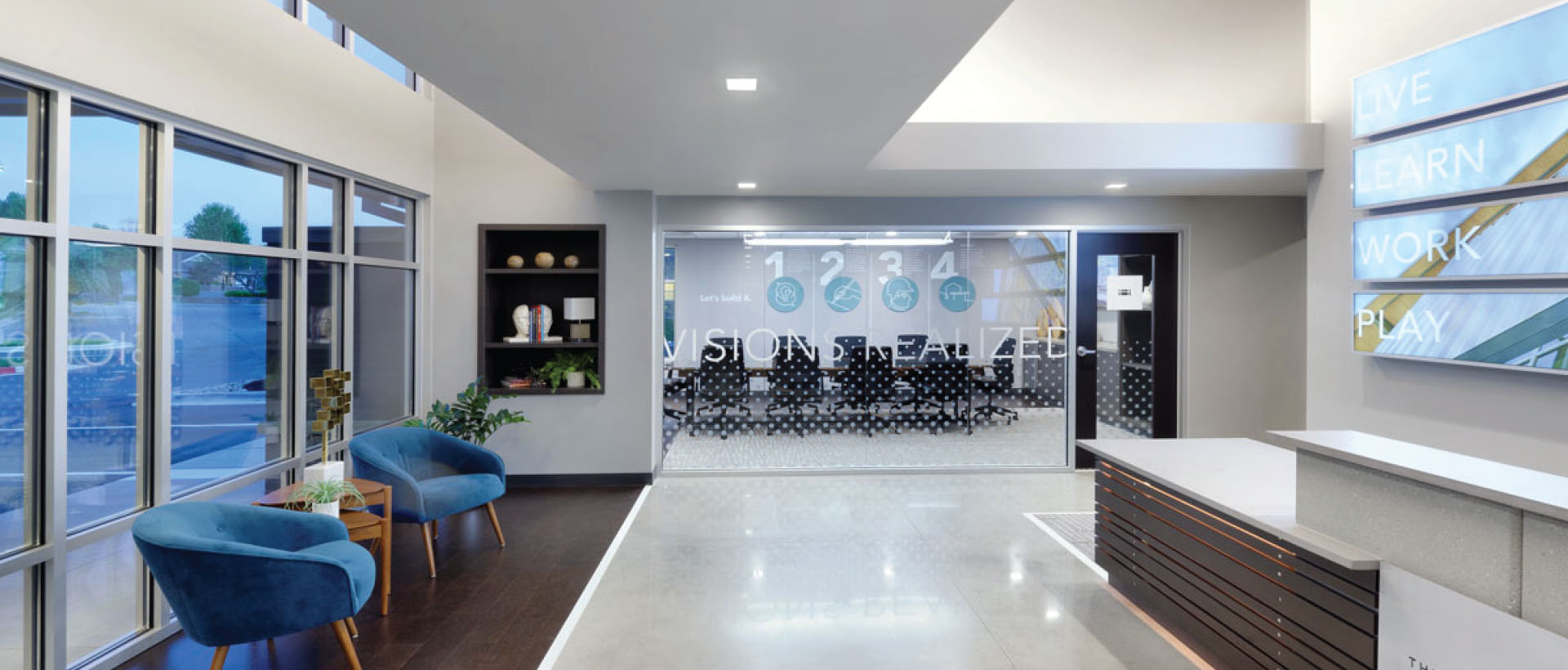

Lobbies & Foyers, Retail Sector, Corporate Office, Airports & Hospitals, Residential & Educational premises, Hospitality Industry, Commercial & Business Centers, Interior Traffic areas.

Available Finish
White epoxy polyester powder coating.

Downloads
Catalogue Page

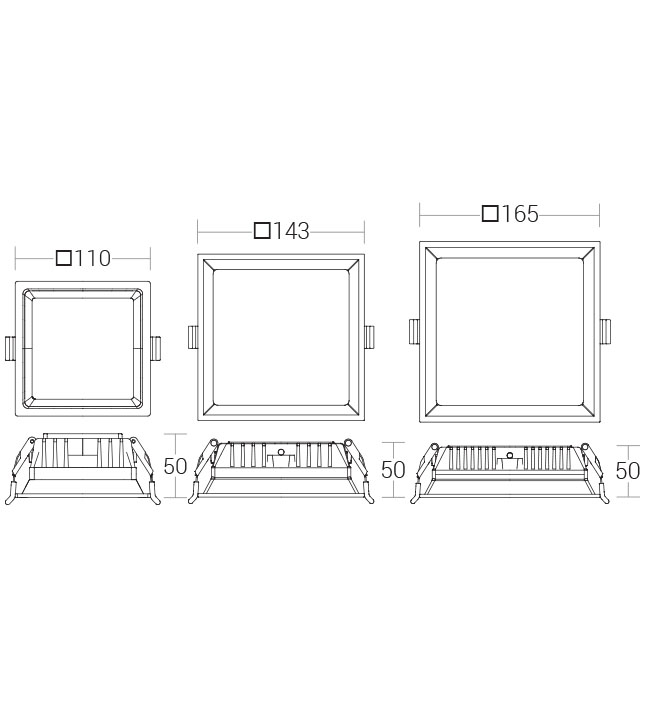

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-332412W LED 3000K,4000K,6500K BA:120°, OpalC.O.D : Sq.100mmKL-3324.IES
KL-3324.IES
KL-3324.PDF
KL-3324.PDF
3324.pdf
KL-332518W LED 3000K,4000K,6500K BA:120°, OpalC.O.D : Sq.133mmKL-3325.IES
KL-3325.IES
KL-3325.PDF
KL-3325.PDF
3325.pdf
KL-332624W LED 3000K,4000K,6500K BA:120°, OpalC.O.D : Sq.155mmKL-3326.IES
KL-3326.IES
KL-3326.PDF
KL-3326.PDF
3326.pdf
