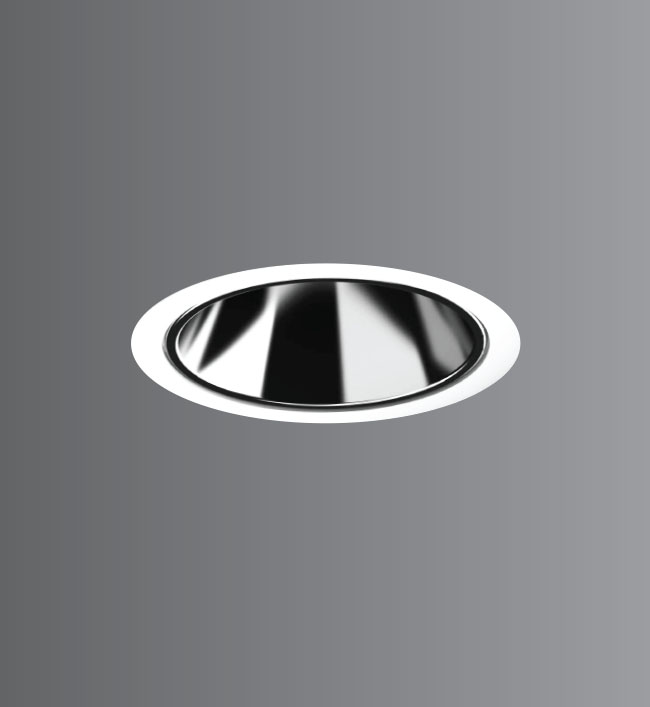

Platina Series
LED recessed ceiling luminaire with adjustable light distribution. High lumen output with CRI >90, different wattage & CCT options makes platina series a versatile range of superior glare free indoor lighting solutions. Modular design for various applications. Easy installation & maintenance.

Product Description
• Luminaire made of die-cast aluminium body and heat sink for better thermal management.
• Dark light technology UGR <16
• Precision engineered high quality optics & electro plated reflector.
• Metallized thermoplastic reflector with anti-scratch protection treatment with high luminous efficiency and visual comfort.
• Powered by CITIZEN, CRI >90
• Adjustable upto 30° / Rotatable 355°
• Beam Angle : 15° / 24° / 38° with diffuser options
• Tunable whites available on request
• Recessed installation false ceiling thickness upto 30mm
• CCT : 2700K / 3000K / 4000K / (5700K On Request)
• High PF constant current LED driver with surge and thermal protection.
• Available with standard and dimmable control gear.
• Cable entries for through-wiring of mains supply cable.
• Suitable for operation on 240V, 50Hz single phase ac supply.

Product Benefits
• Easy maintenance without removing the frame from false ceiling
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.

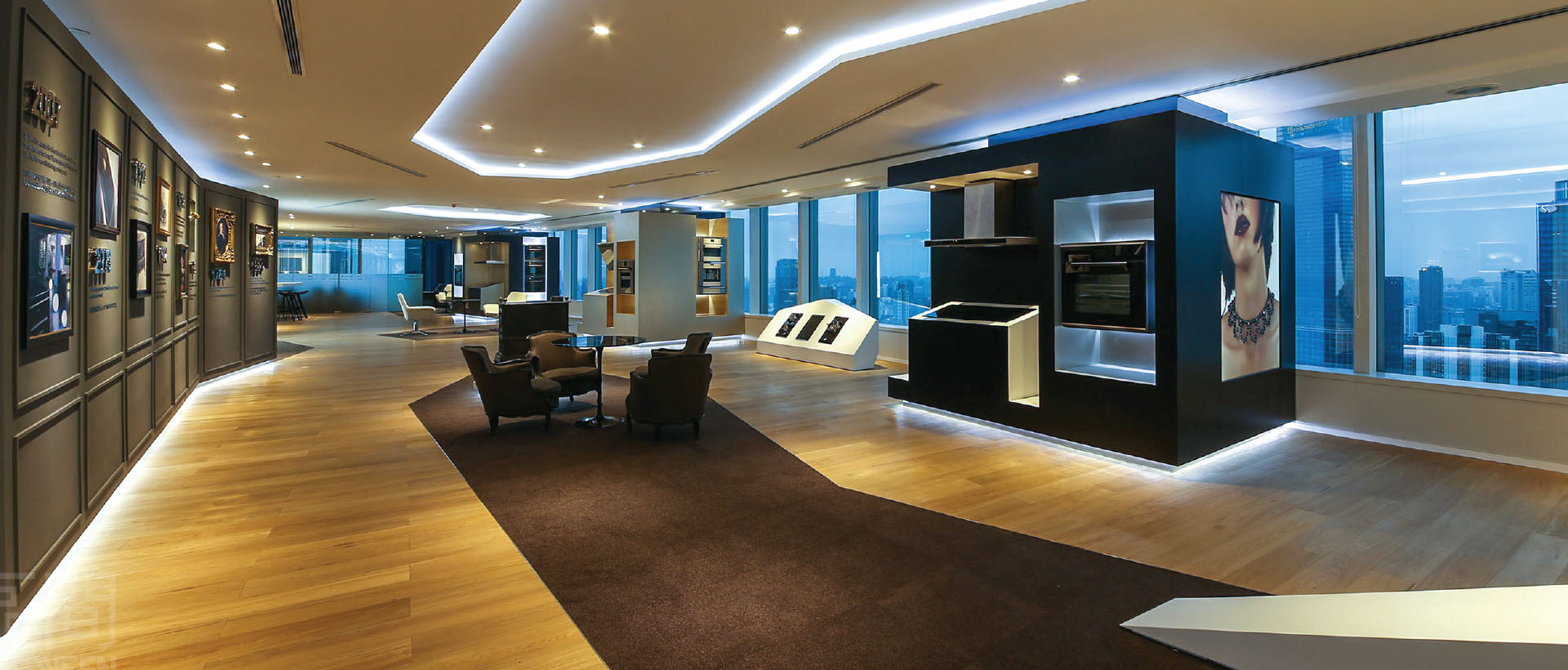

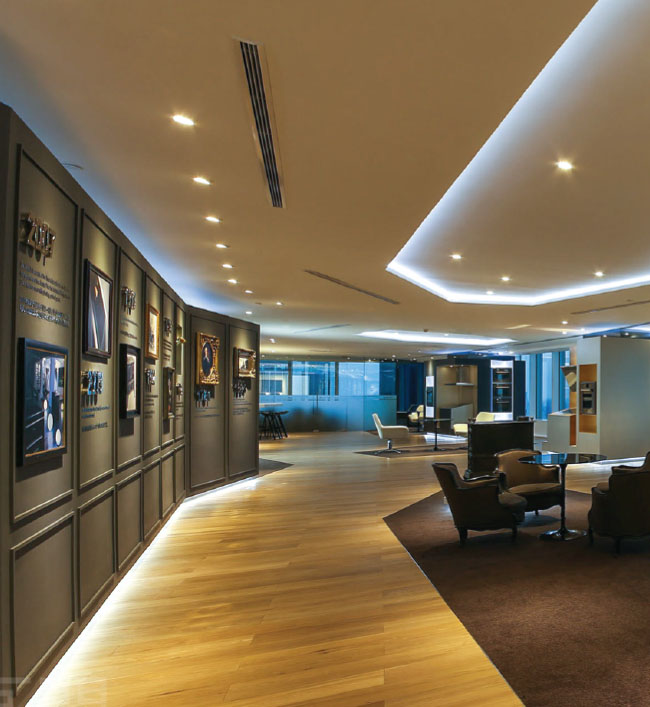

Area of Application
Highend Residential, Hotel, Villas, Clubs, Lobbies & Foyers, Retail Sector, Corporate Office, Hospitality Industry, Commercial & Business Centers etc.

Downloads
Catalogue Page

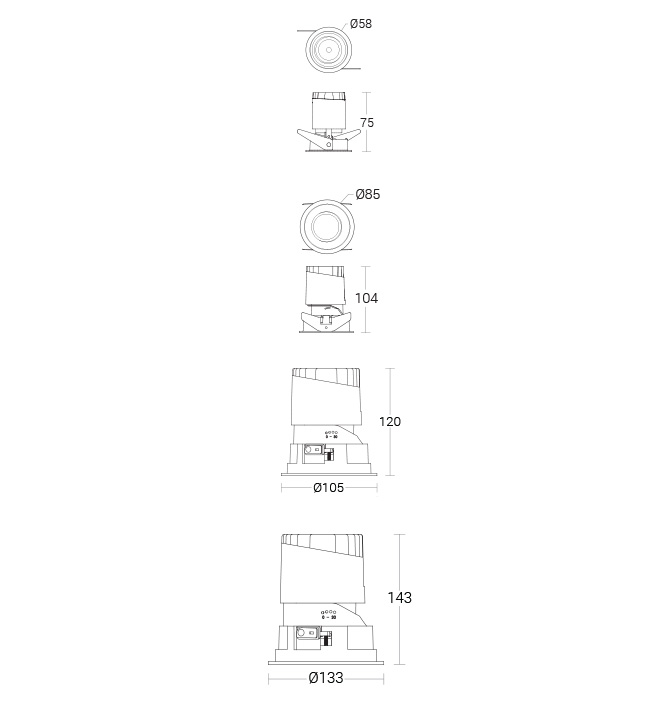

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-333035W LED 2700K,3000K,4000K,6500K BA:15°,24°,38°, PolycarbonateC.O.D : Ø120mmKL-3330.IESKL-3330.PDF3330.pdf
KL-33276W LED 2700K,3000K,4000K,6500K BA:15°,24°,38°, PolycarbonateC.O.D : Ø52mmKL-3327.IESKL-3327.PDF3327.pdf
KL-332920W LED 2700K,3000K,4000K,6500K BA:15°,24°,38°, PolycarbonateC.O.D : Ø96mmKL-3329-BA24°-WW.IES
KL-3329-BA15°-WW.IES
KL-3329-BA24°-WW.PDF
KL-3329-BA15°-WW.PDF
3329.pdf
KL-332812W LED 2700K,3000K,4000K,6500K BA:15°,24°,38°, PolycarbonateC.O.D : Ø75mmKL-3328-BA15°-WW.IES
KL-3328-BA24°-WW.IES
KL-3328-BA15°-WW.PDF
KL-3328-BA24°-WW.PDF
3328.pdf
