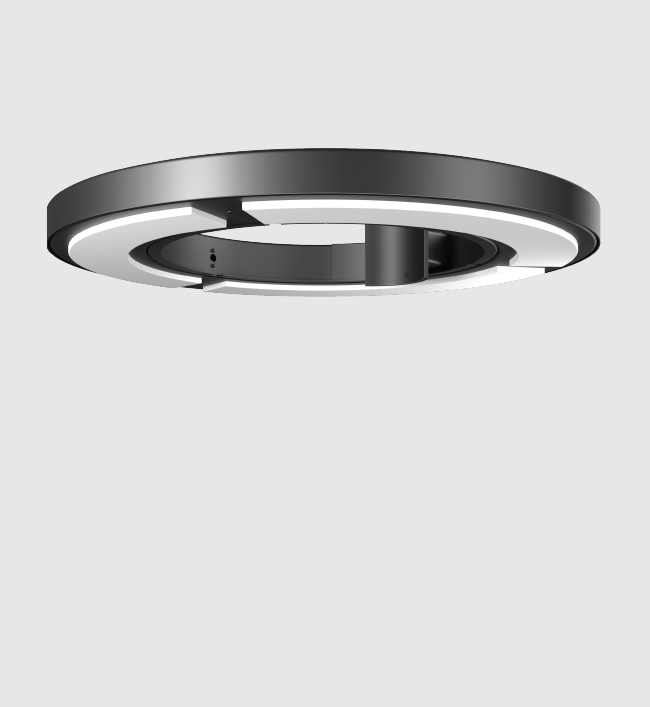

Juno Hoop
An elegant and efficient lantern with translucent diffuser provide a unique, comfortable light choice with glare free light distribution. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation.

Product Description
• Spun aluminium housing
• Diffuser placed into the provision formed on the pheriphery of the bottom cover.
• Non yellowing UV stabilized translucent acrylic diffuser.
• Low power loss LED driver with 60W LED.
• Suitable for mounting on Ø114.3mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : 80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4297-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly, moisture proof, insect free.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

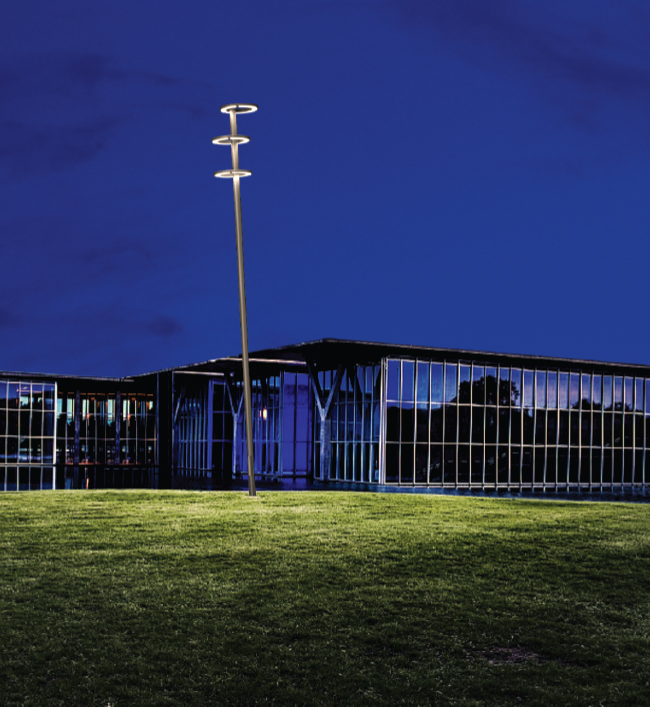

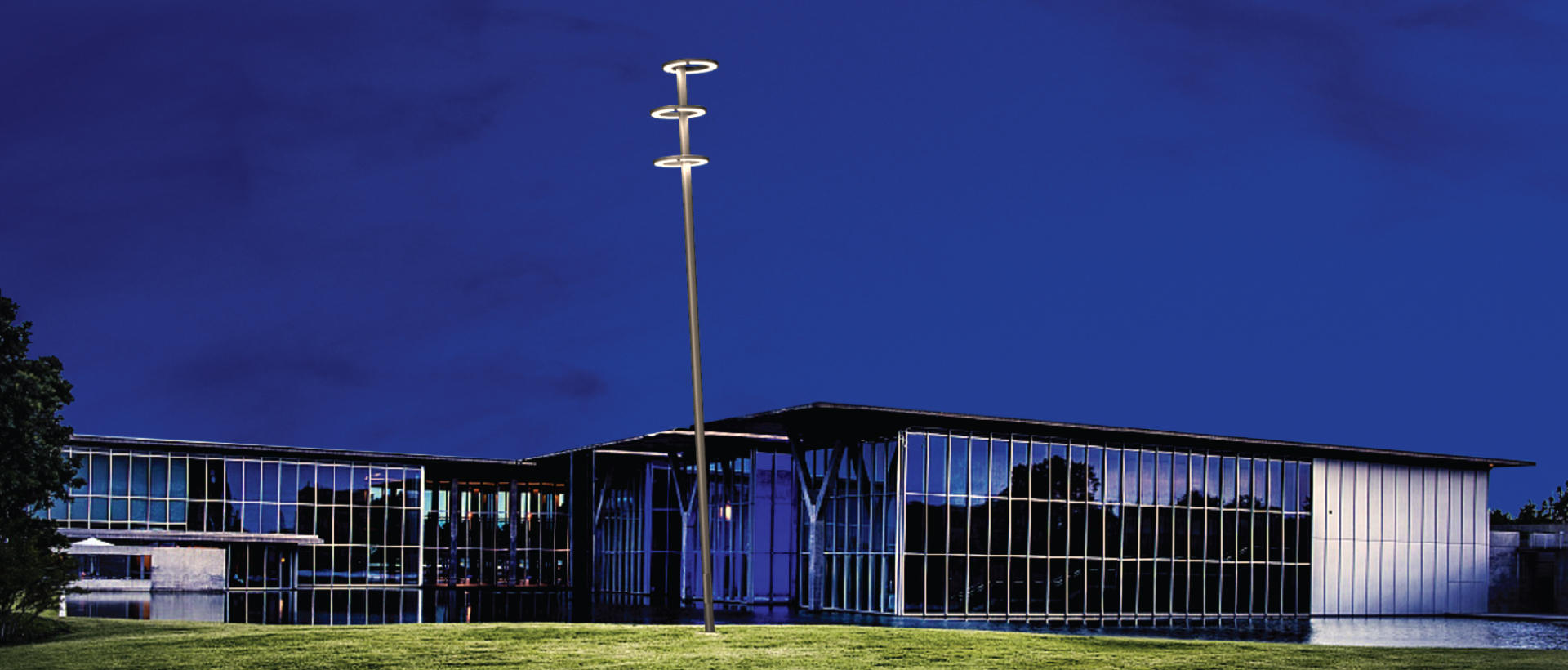

Illuminating parks, Gardens, commercial complex, Pathways in residential buildings & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black

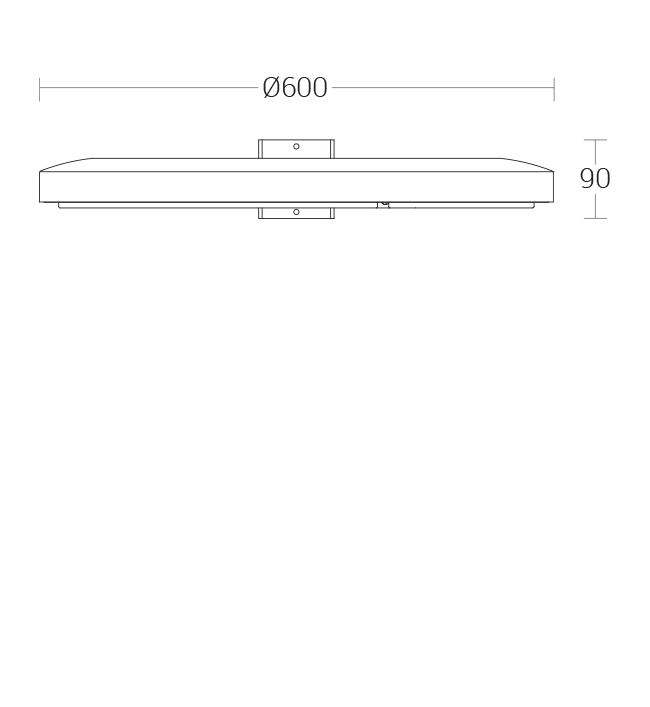

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-429760W LED WW,NW,CWØ600 x 90mmKL-4297-BA120°-WW.IES
KL-4297-BA120°-CW.IES
KL-4297-BA120°-NW.IES
KL-4297-BA120°-WW.PDF
KL-4297-BA120°-CW.PDF
KL-4297-BA120°-NW.PDF
4297.pdf
