Amy

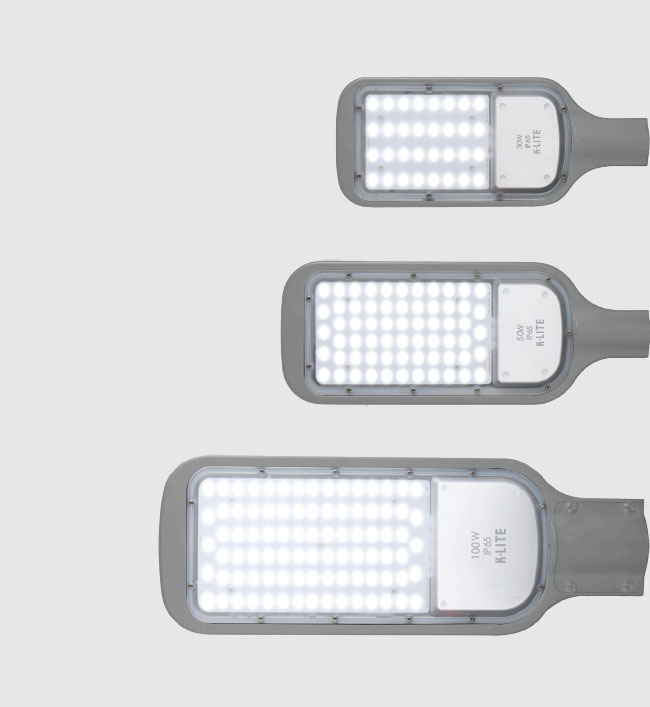

Amy street light Cut off lantern, integral model, horizontal mounting. High Brightness, LED Light source do not pose any environment risks. Improved long lasting protection against ingress of dust / insects inside optical compartment.

Product Description
• Luminaire made of pressure die cast aluminium alloy with non corrosive SS fasteners.
• Easy Installation suitable for mounting on 38mm dia pole for 30W & 50W LED / 60mm dia pole for 100W & 120W LED.
• Clear polycarbonate optical cover.l
• Ergonomic lighting distribution to achieve uniform illumination.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4293-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 6500K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Functionality
• Corrosion resistant and easy maintanance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

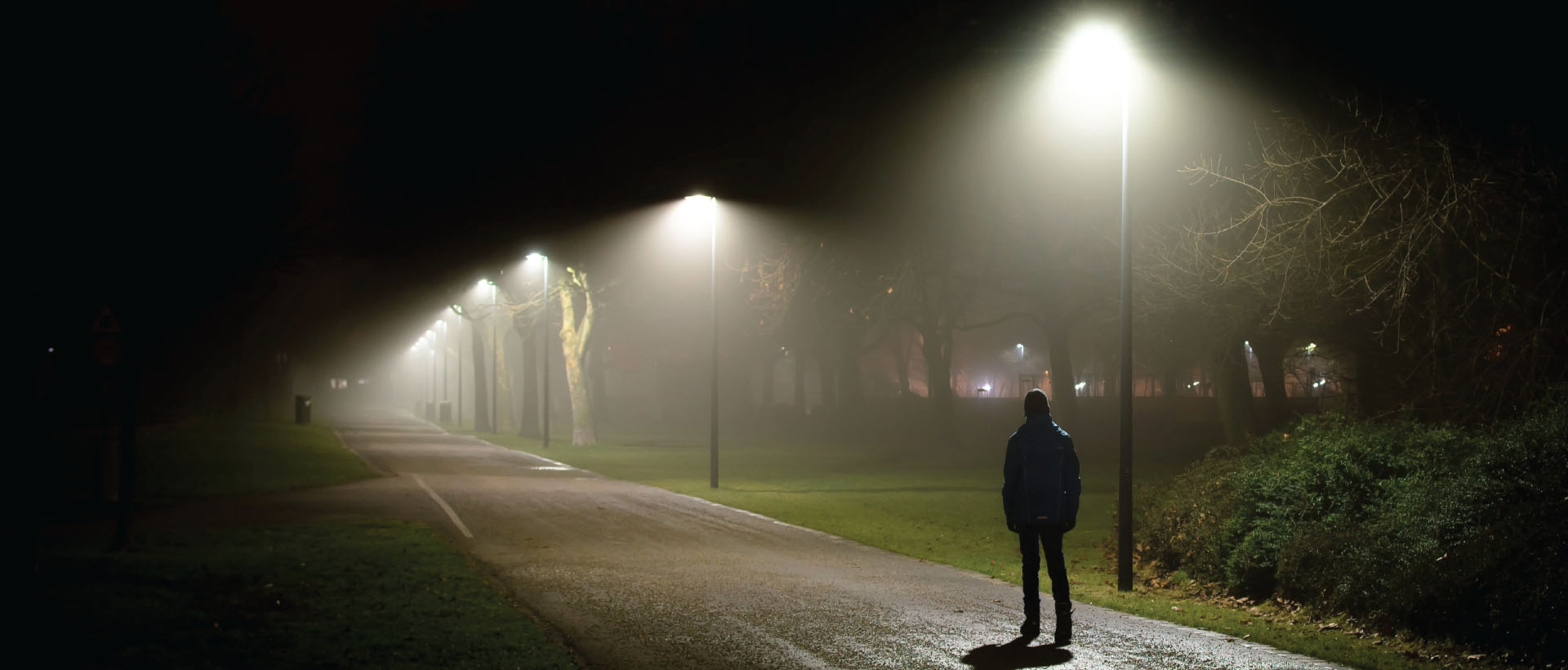

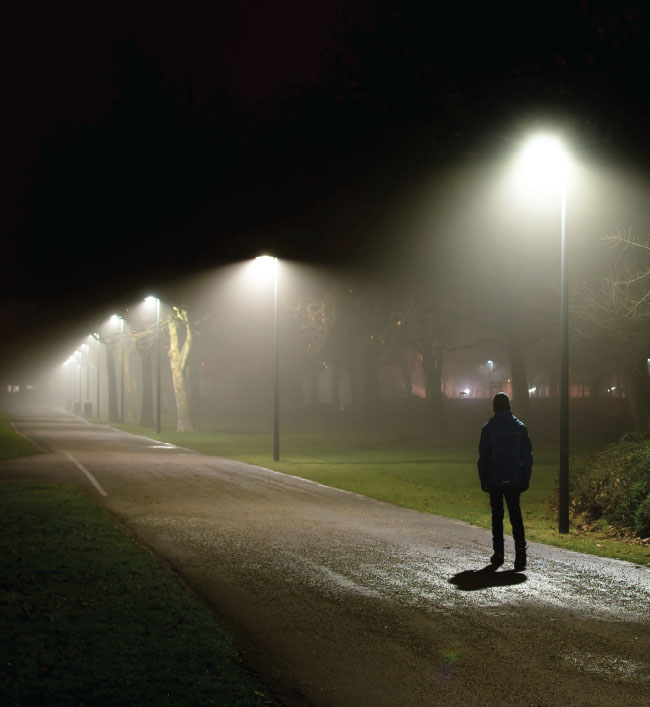

Street Lighting, Park Lighting, Expressways, Highways, Courtyards.

Available Finish
Pure polyester powder coated grey

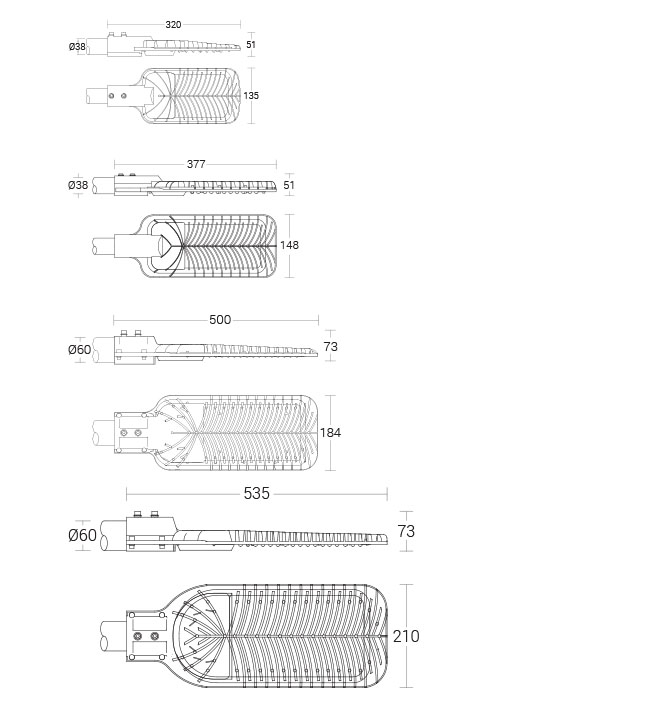

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-429330W LED WW,NW,CW BA:Type III, Clear Polycarbonate Optical Cover320 x 135 x 51mmD6KL-4293.IESKL-4293.PDF4293.pdf
KL-429450W LED WW,NW,CW BA:Type III, Clear Polycarbonate Optical Cover377 x 148 x 51mmD6KL-4294.IESKL-4294.PDF4294.pdf
KL-4295100W LED WW,NW,CW BA:Type III, Clear Polycarbonate Optical Cover500 x 184 x 73mmD2KL-4295.IESKL-4295.PDF4295.pdf
KL-4296120W LED WW,NW,CW BA:Type III, Clear Polycarbonate Optical Cover535 x 210 x 73mmD2KL-4296.IESKL-4296.PDF4296.pdf
