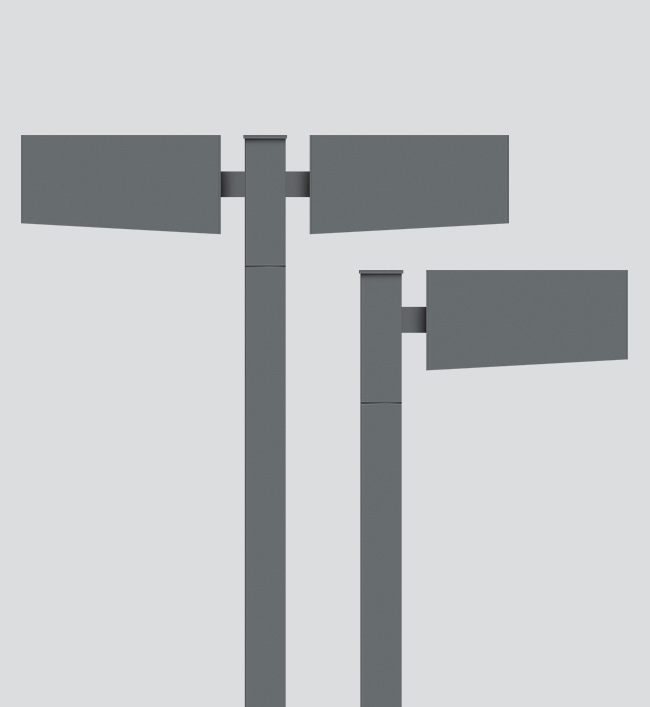

Navya
“Navya / Dual Navya” pathway luminaire, is an innovative design options to provide visual integration with the environment. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation. Product offered asymmetrical light distribution.

Product Description
• Luminaire body made of extruded aluminium alloy (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Suitable for mounting on 76mm / 88.9mm OD pipe, 72mm / 91mm square pipe.
• Extruded aluminium mounting pipe for easy installation onto the pole.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4443-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly, moisture proof, insect free.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

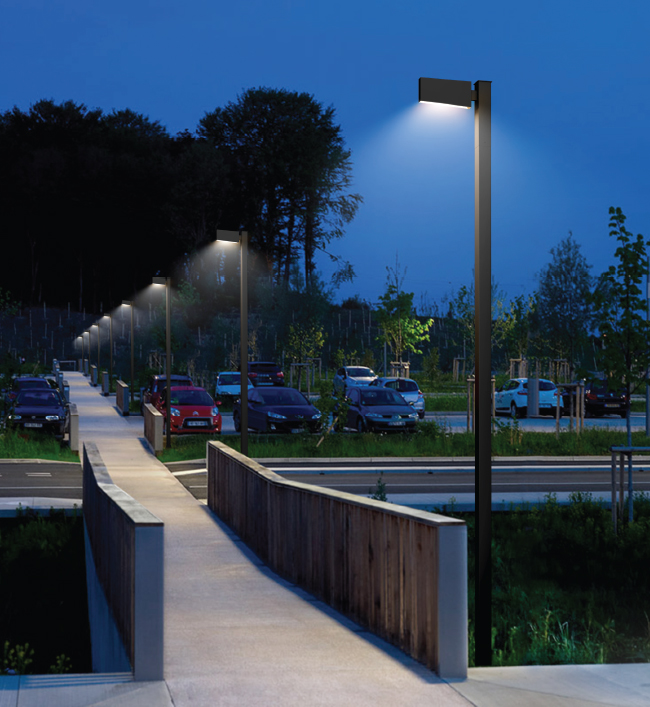

Illuminating parks, Gardens, Private driveways, Commercial complex, Pathways in Residential buildings & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

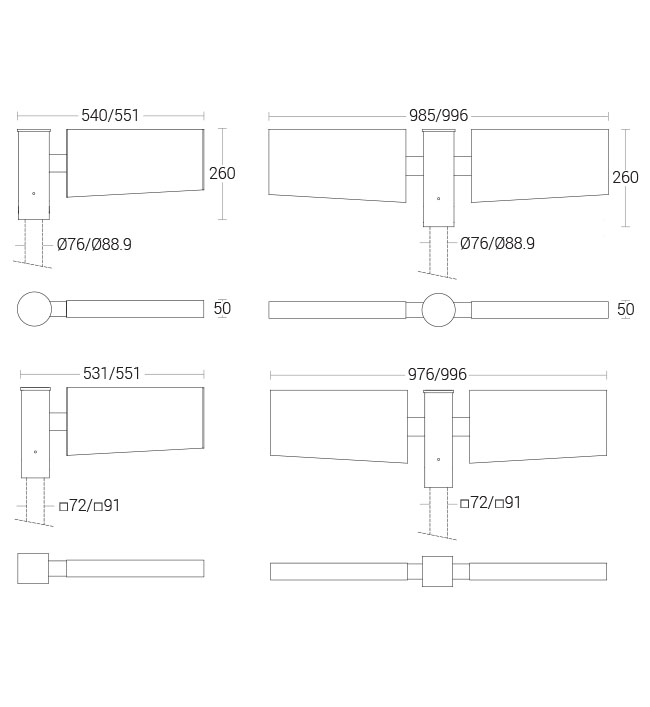

KL-444396W LED 3000K,4000K,5700K BA:Type III Medium, Polycarbonate Optical LensD3:985xØ88.9x260, D26:996xØ100x260, D15:976xSq.80x260, D16:996xSq.100x260mmD3
D26
D15
D16
KL-4443-BANA-NW.IES
KL-4443-BANA-NW.PDF
4443.pdf
KL-444248W LED 3000K,4000K,5700K BA:Type III Medium, Polycarbonate Optical LensD3:540xØ88.9x260, D26:551xØ100x260, D15:531xSq.80x260, D16:551xSq.100x260mmD3
D26
D15
D16
KL-4442-BANA-NW.IES
KL-4442-BANA-NW.PDF
4442.pdf
