Imperial Mini

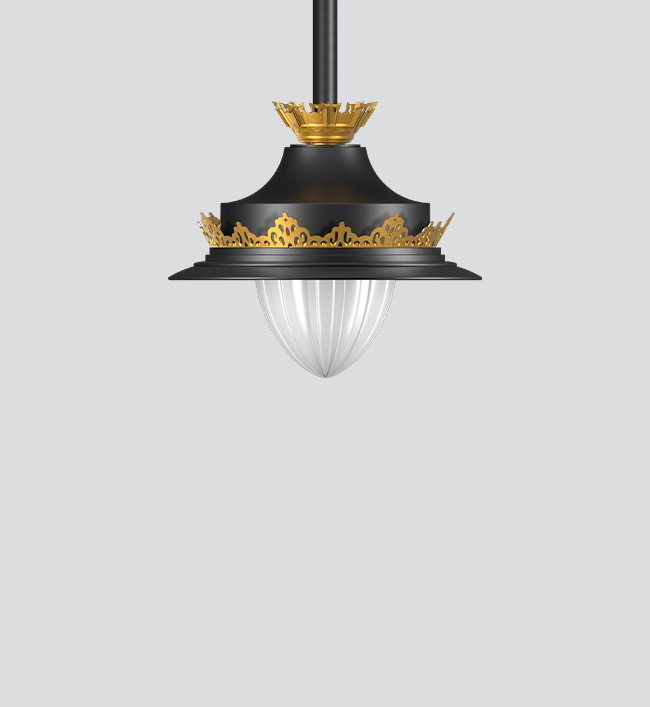

Imperial Mini pathway luminaires is a special purpose outdoor luminaire,integral model,totally weather proof aesthetically contoured.Improved long lasting protection against ingress of dust / moisture / insects inside optical compartment with top opening facility for maintenance.

Product Description
• Luminaire comprises of specially contoured spun aluminium body featuring high strength and anti corrosion.
• Aluminium Casting crown attachment added for aesthetics.
• Non yellowing,UV stabilised,Clear V acrylic diffuser / Clear V PC diffuser.
• EPDM gasket.
• Luminaire integrated with 50W LED.
• Suitable for mounting to internally threaded pipe of designation M30.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• Suitable for operation on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4893-CCT (Colour Temperature)
• Available CCT : 2700K,3000K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile,strong and stable.
• Corrosion resistant and easy maintanance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

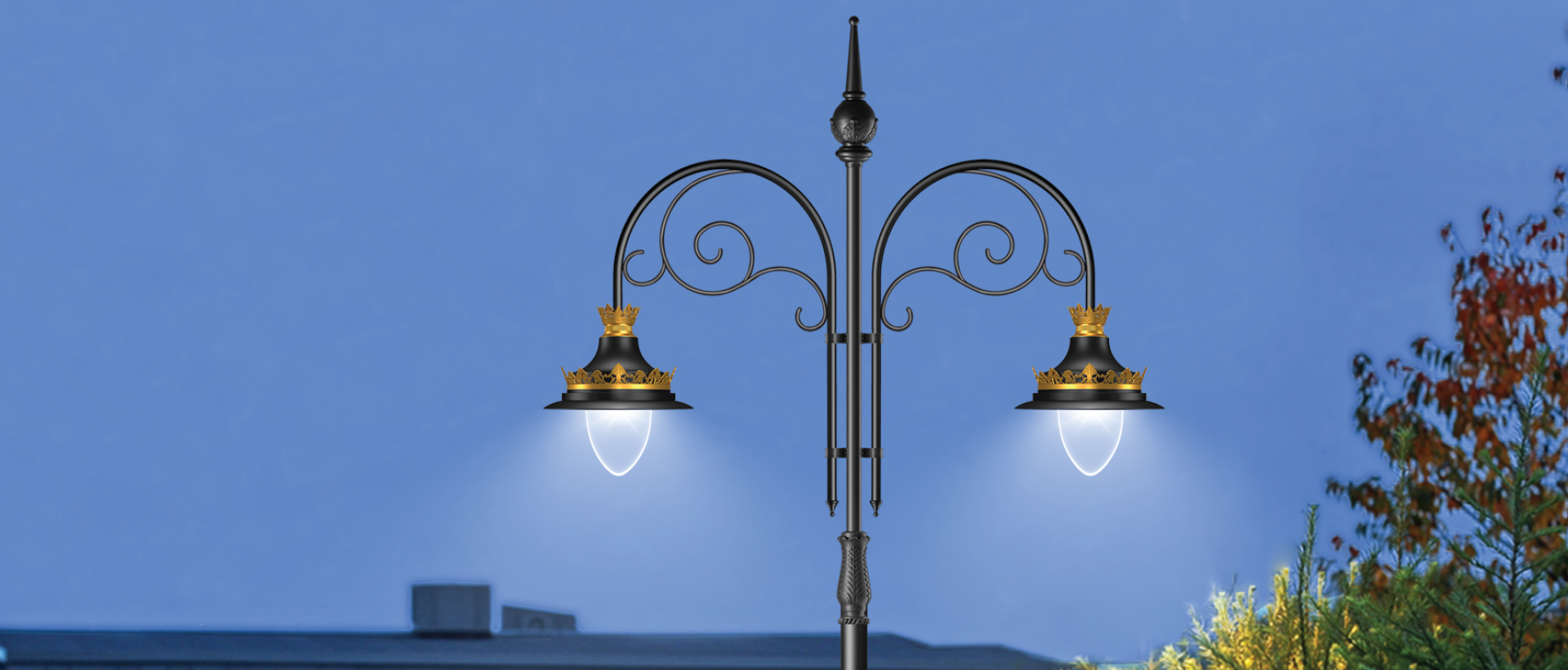

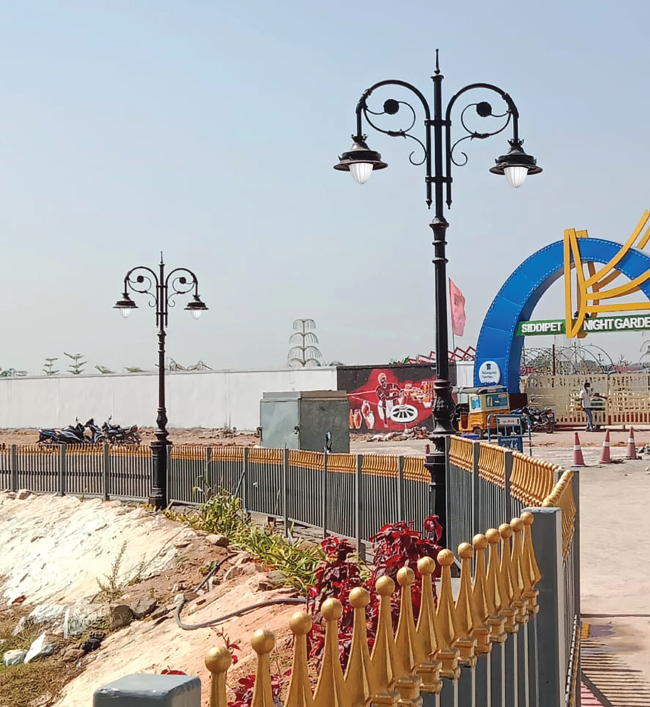

Gardens,Smaller Roadways,Private driveways,Residential Area Lighting,Courtyards,Public area lighting like parks & Squares.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

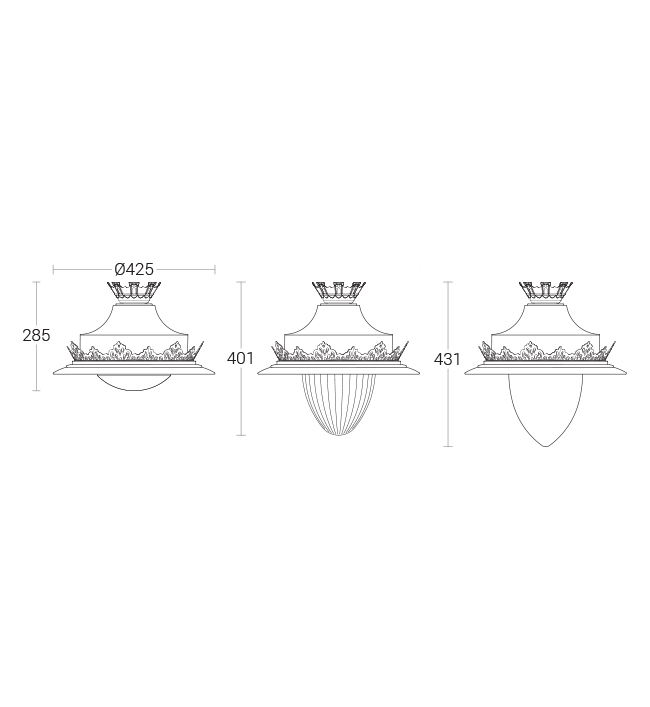

KL-4890E27 Holder, A8 - Translucent Acrylic, A9 - Clear Acrylic, A12 - Clear PolycarbonateA8 / A9 : Ø425 x 401, A12 : Ø425 x 431mmD4
4890.pdf
KL-489230W LED 2700K,3000K,4000K,5700K, A8 - Translucent Acrylic, A10 - Translucent AcrylicA8 : Ø425 x 401, A10 : Ø425 x 285mmD4
KL-4892.IESKL-4892.PDF4892.pdf
KL-489130W LED 3000K,4000K,5700K BA:Type IV, A9 - Clear Acrylic, A12 - Clear PolycarbonateA9 : Ø425 x 401, A12 : Ø425 x 431mmD4
KL-4891-BAASYMMETRICAL-WW.IES
KL-4891-BAASYMMETRICAL-CW.IES
KL-4891-BAASYMMETRICAL-NW.IES
KL-4891-BAASYMMETRICAL-WW.PDF
KL-4891-BAASYMMETRICAL-CW.PDF
KL-4891-BAASYMMETRICAL-NW.PDF
4891.pdf
KL-489350W LED 3000K,4000K,5700K BA:Type IV, A9 - Clear Acrylic, A12 - Clear PolycarbonateA9 : Ø425 x 401, A12 : Ø425 x 431mmD4
KL-4893-BAASYMMETRICAL-WW.IES
KL-4893-BAASYMMETRICAL-CW.IES
KL-4893-BAASYMMETRICAL-NW.IES
KL-4893-BAASYMMETRICAL-WW.PDF
KL-4893-BAASYMMETRICAL-CW.PDF
KL-4893-BAASYMMETRICAL-NW.PDF
4893.pdf
