Zedo

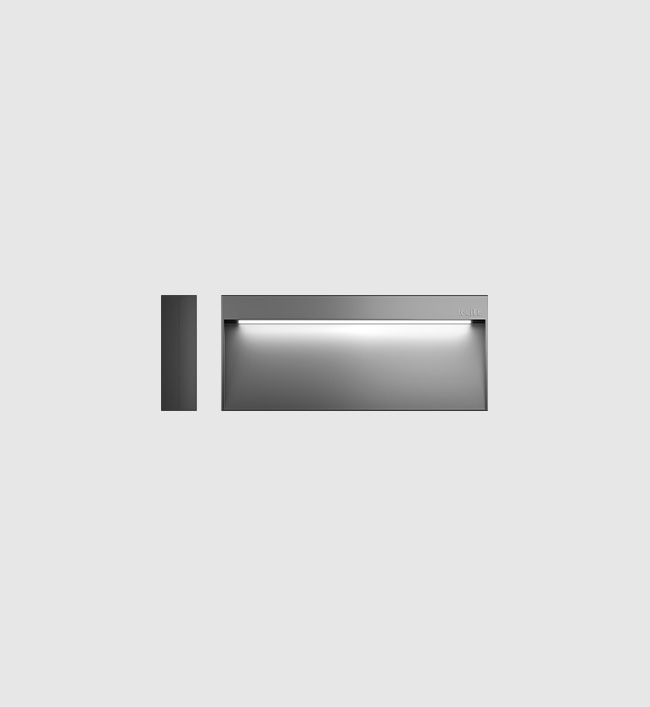

Asymmetrical surface mount floor washer with a wide beam for glare free illumination of pathways, entrances etc. Sustainable LED technology offers durability and optimal light output with lower power consumption.

Product Description

• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive A2 stainless steel fasteners.
• Non yellowing UV stabilized clear polycarbonate diffuser.
• Silicone gasket.
• Die cast aluminium installation housing for surface mounting on wall.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 (90 CRI - On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-2767-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits

• High visual comfort
• High luminous efficiency at reduced wattage.
• A sleek and minimalist shape provides distinctive lighting effects for walkway architecture.

Area of Application

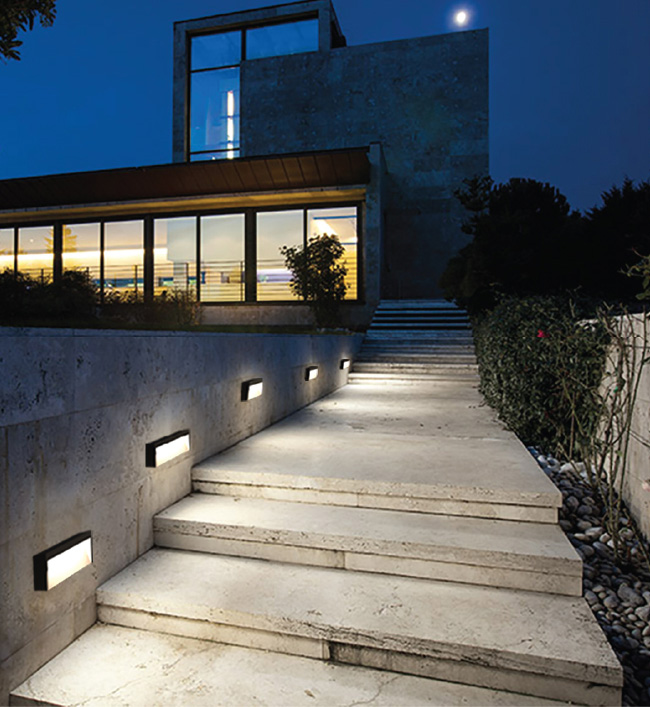

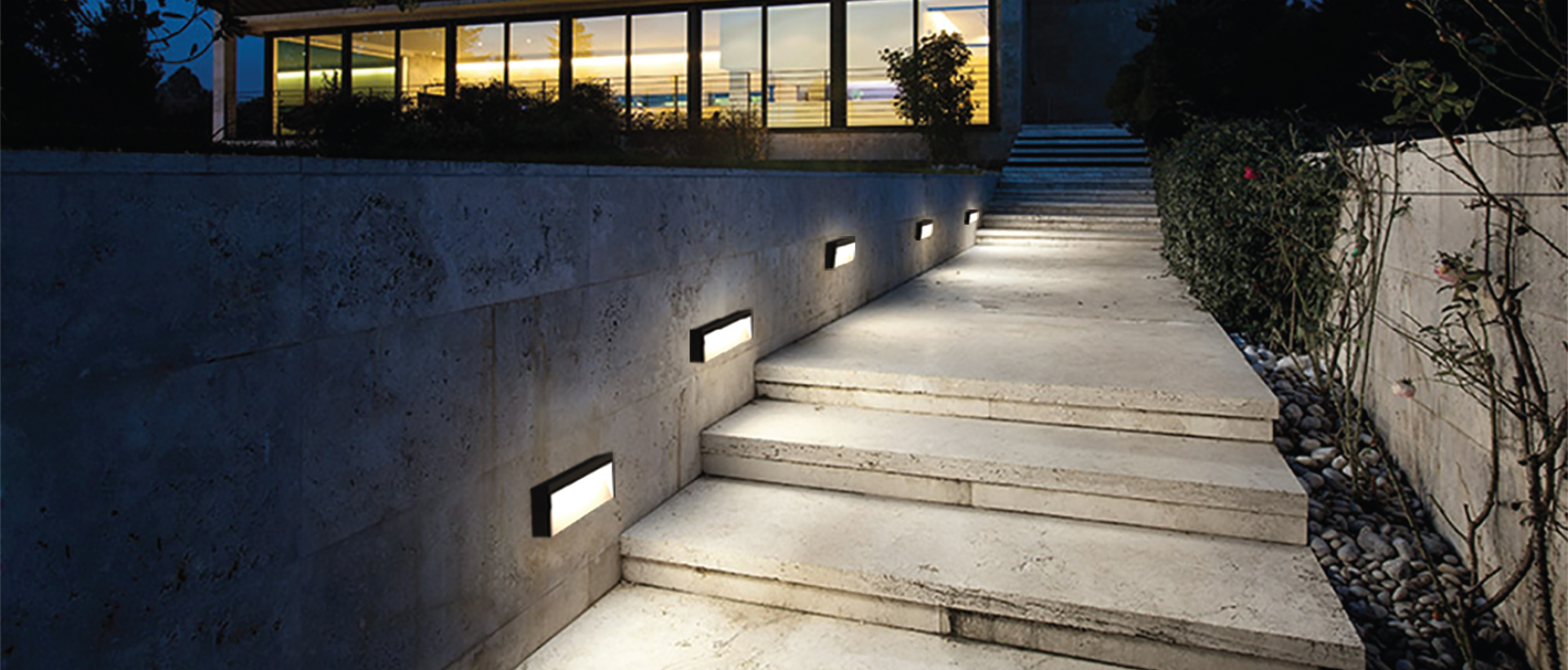

Staircase,Patios,Walkways,Passages,Porches,Entrance & Exits for both Interior & Exterior applications.

Available Finish

Pure polyester powder coat
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

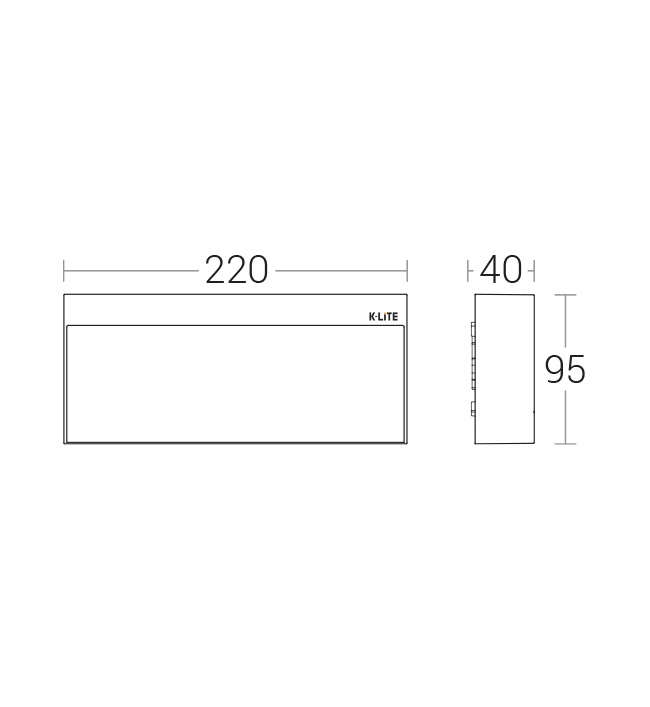

KL-276712W LED 2700K,3000K,4000K,5700K, Clear Polycarbonate220 x 40 x 95mmKL-2767-BA--NW .IES
KL-2767-BA--WW.IES
KL-2767-BA--NW .PDF
KL-2767-BA--WW.PDF
2767.pdf
