Mira
High efficiency LED flood light luminaires designed to provide directional wall throw. The product design and construction of the luminares are characterized by high luminous efficiency, an extremely long service life and uniform illuminance.

Product Description
• Housing made of die-casting aluminium.
• Mounting bracket to facilitate proper aiming of the luminaire at desired angle during installation.
• High PF>0.90 constant current LED driver with built in surge and thermal protection.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4257-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 6500K

Product Benefits
• High luminous efficiency at reduced wattage.
• Quick to install and easy to use, secure and reliable
• Compact size, Optimum performance
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Architectural and building facade lighting, Ports & Terminals, Construction sites, Structures and Security lighting, Sports field, Commercial & Business centre, Logistic Hubs, Industries.

Available Finish
Pure polyester powder coated grey.

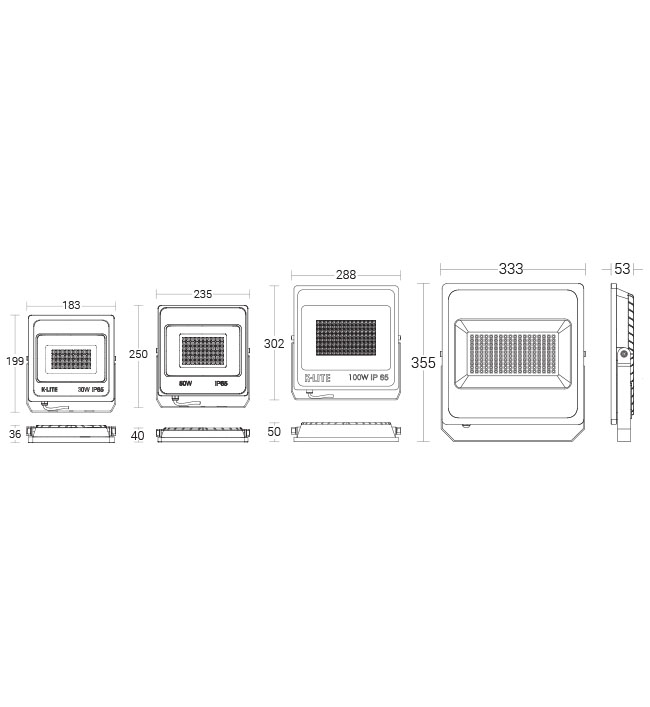

IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description
KL-425730W LED WW,NW,CW BA:120°, PET / Glass183 x 36 x 199mmKL-4257-BA120°-WW.IES
KL-4257-BA120°-CW.IES
KL-4257-BA120°-WW.PDF
KL-4257-BA120°-CW.PDF
4257.pdf
KL-4257.txt
KL-425850W LED WW,NW,CW BA:120°, PET / Glass235 x 40 x 250mmKL-4258-BA120°-WW.IES
KL-4258-BA120°-CW.IES
KL-4258-BA120°-WW.PDF
KL-4258-BA120°-CW.PDF
4258.pdf
KL-4258.txt
KL-4259100W LED WW,NW,CW BA:120°, PET / Glass288 x 50 x 302mmKL-4259-BA120°-WW.IES
KL-4259-BA120°-CW.IES
KL-4259-BA120°-WW.PDF
KL-4259-BA120°-CW.PDF
4259.pdf
KL-4259.txt
KL-4260150W LED WW,NW,CW BA:120°, PET / Glass333 x 53 x 355mmKL-4260-BA120°-WW.IES
KL-4260-BA120°-CW.IES
KL-4260-BA120°-WW.PDF
KL-4260-BA120°-CW.PDF
4260.pdf
KL-4260.txt
