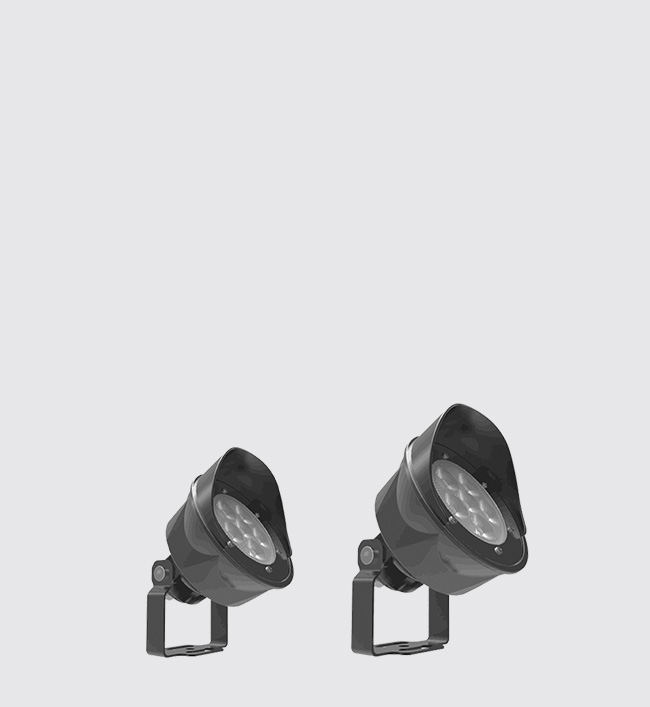

High efficiency LED flood light luminaires designed to provide directional wall throw.The product design and construction of the luminares are characterized by high luminous efficiency,an extremely long service life and uniform illuminance.

Product Description
• Luminaire body & hood cover made of die cast aluminium.
• Frosted Polycarbonate Optical lens.
• Lumen Efficiency up to 80 lm/W.
• Mounting bracket to facilitate proper aiming of the luminaire at desired angle.
• Cable entries for through-wiring of mains supply cable.
• Beam angle 15°,25°.
• Suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4244-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile,strong and stable.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

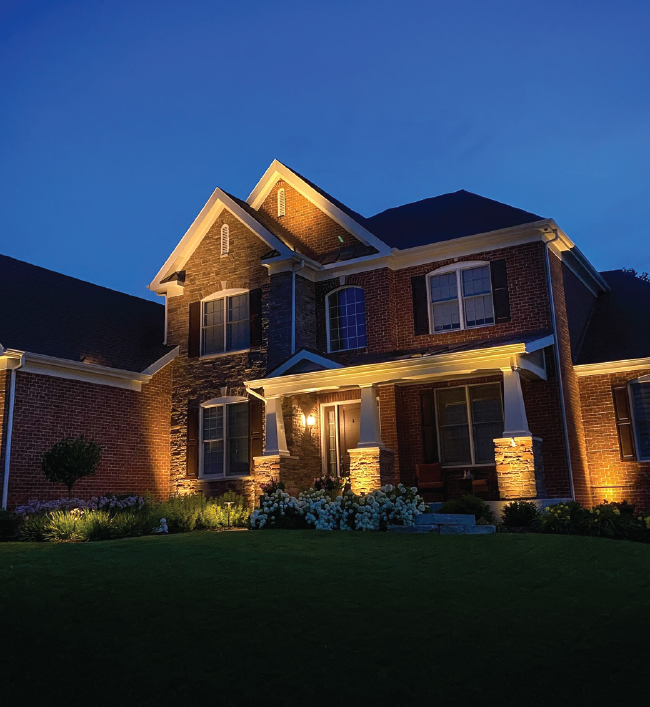

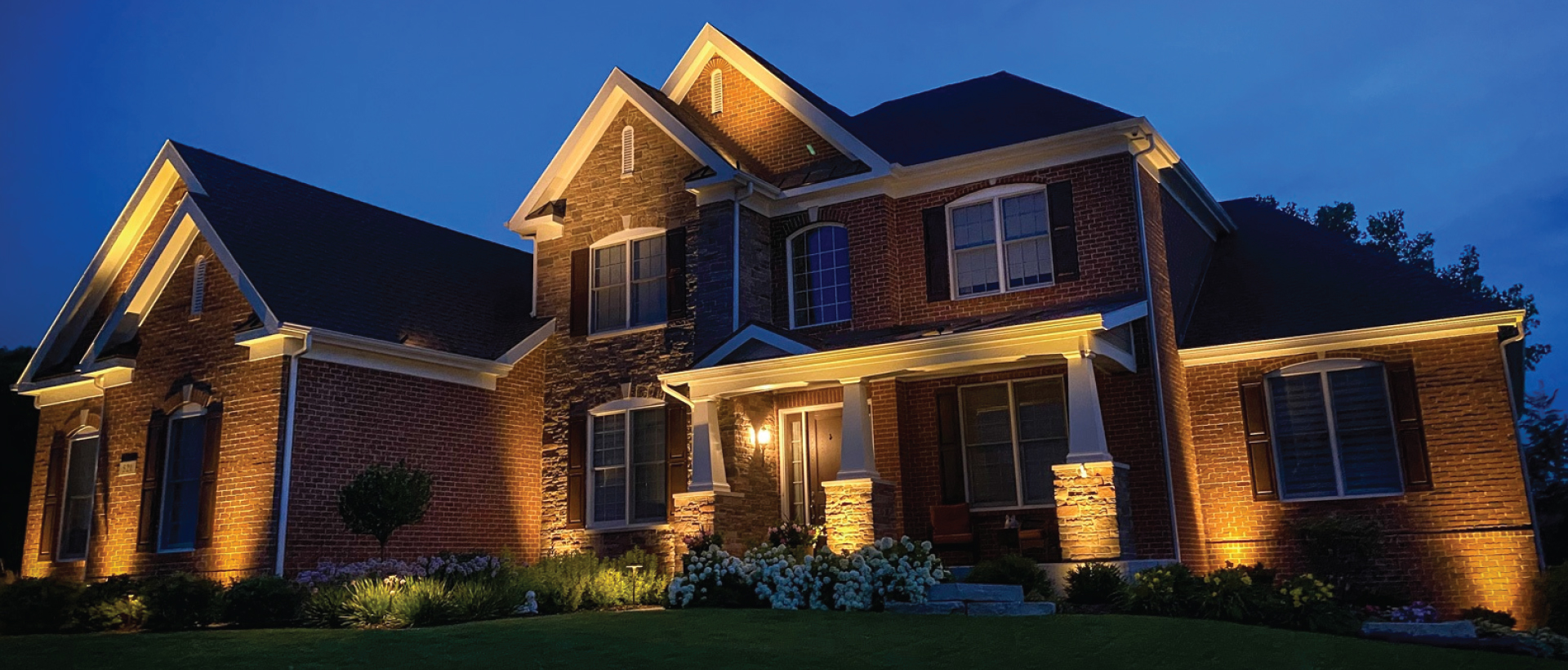

Architectural and building facade lighting,Pathways,Parks,Sculptures,Structures and Security lighting.

Available Finish
Pure polyester powder coated graphite grey.

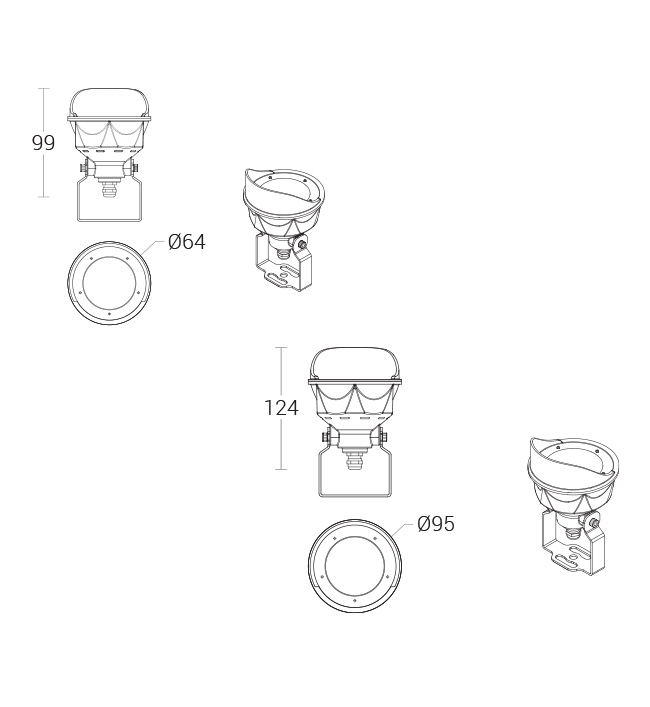

IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description
KL-42445W LED Non Integral WW,NW,CW BA:15°,25°, Frosted Polycarbonate Optical CoverØ64 x 99mm4244.pdf
KL-424510W LED Non Integral WW,NW,CW BA:15°,25°, Frosted Polycarbonate Optical CoverØ95 x 124mm4245.pdf
