Linear In-Ground Luminaires - Wall Washer

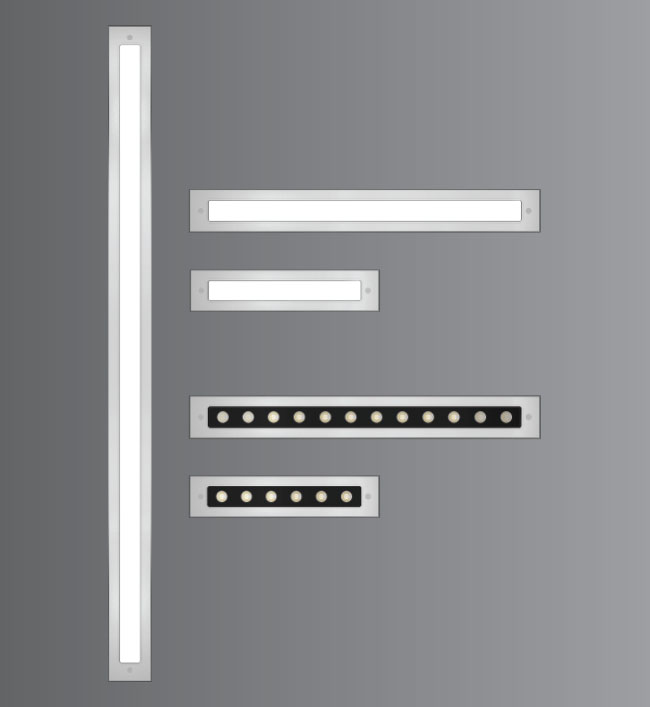

Linear recess mounted LED luminaires suitable for floor and wall applications which adds elegance to commercial, historical and modern architecture. Three different lengths are provided allowing the luminaire installation to be tailored as per the structure.

Product Description
• Recessed luminaire housing made of aluminium semi frosted and Stainless steel 316 front plate 3mm thickness.
• Safety 6mm thickness toughened glass (Lens).
• Luminaire suitable for walkover applications.
• Luminaire must not be used for installation where the fixture is exposed to a horizontal strain due to braking, acceleration and change of direction.
• Recessed LED luminaires without power supply unit.
• CRI ( Ra) : >80 (90 CRI - On Request)
• Constant voltage non integral power supply
• Recess mounting sleeve made of aluminium profile, powder coated with cable entries for connecting cable up to Ø12 mm.
• Low Voltage at 24V dc assures safety.
• Ordering guide : KL-3278-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K (Special colours on request).

Product Benefits
• High luminous effeciency at reduced wattage.
• A sleek and minimalist shape provides distinctive lighting effects for inground and wall architecture.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

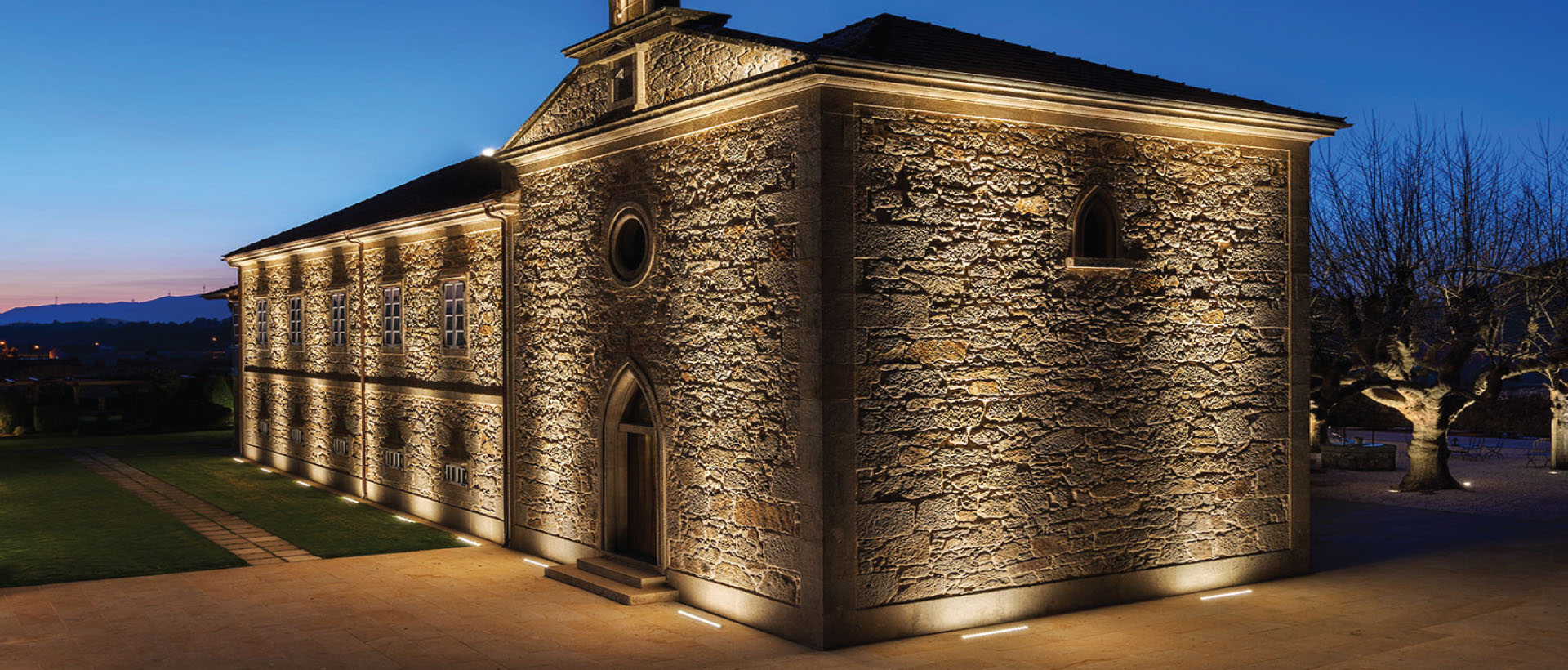

Building Facade, Walk ways, Building mounted focal points, Bridges, Landscapes, Architectural elements.

Accessory
• A separate IP67 rated connector supplied for a secure connection.
• Power supply unit of 24V dc required for the luminaire.
• The power supply units are also suitable for the operation of several LED luminaires.In this case total wattage of the LED luminaires must not exceed the wattage of power supply.

Installation
Possible in both horizontal and vertical mounting position.

Downloads
Catalogue Page
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description

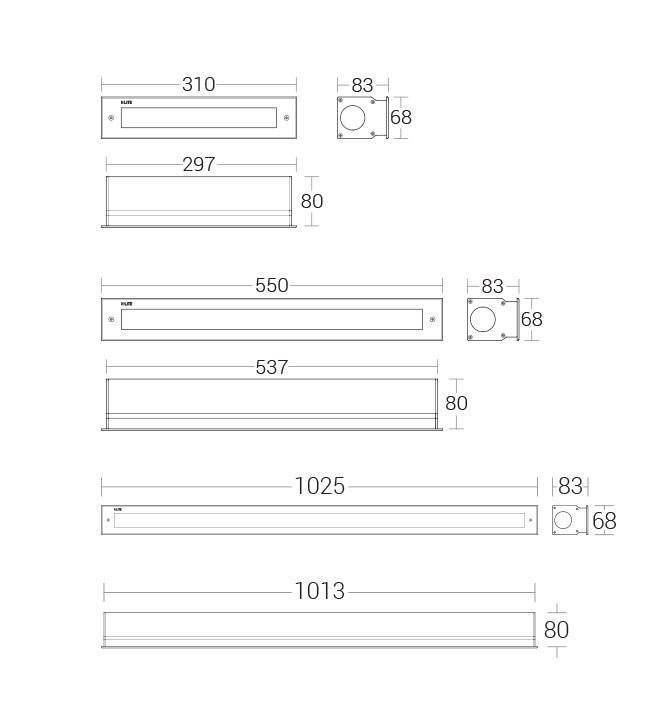

KL-327248W LED WW,NW,CW BA:24°,8°,12°,40°,60°,40°x11°, Tempered Clear GlassC.O.D : 1015 x 68 x 80mmKL-3272-BA40°-NW.IES
KL-3272-BA40°-NW.PDF
3272.pdf
KL-328024W LED WW,NW,CW BA:24°,8°,12°,40°,60°,40°x11°, Tempered Clear GlassC.O.D : 1015 x 68 x 80mmKL-3280-BA40°-WW.IES
KL-3280-BA12°-WW.IES
KL-3280-BA40°-WW.PDF
KL-3280-BA12°-WW.PDF
3280.pdf
KL-354912W LED WW,NW,CW BA:8°,12°,24°,40°,60°,40°x11°, Tempered Clear GlassC.O.D : 300 x 68 x 80mm3549.pdf
KL-35526W LED WW,NW,CW BA:24°,8°,12°,40°,60°,40°x11°, Tempered Clear GlassC.O.D : 300 x 68 x 80mm3552.pdf
KL-327024W LED WW,NW,CW BA:24°,8°,12°,40°,60°,40°x11°, Tempered Clear GlassC.O.D : 540 x 68 x 80mmKL-3270-BA24°-WW.IES
KL-3270-BA12°-WW.IES
KL-3270-BA24°-WW.PDF
KL-3270-BA12°-WW.PDF
3270.pdf
KL-327812W LED WW,NW,CW BA:24°,8°,12°,40°,60°,40°x11°, Tempered Clear GlassC.O.D : 540 x 68 x 80mmKL-3278-BA24°-WW.IES
KL-3278-BA12°-WW.IES
KL-3278-BA24°-WW.PDF
KL-3278-BA12°-WW.PDF
3278.pdf
