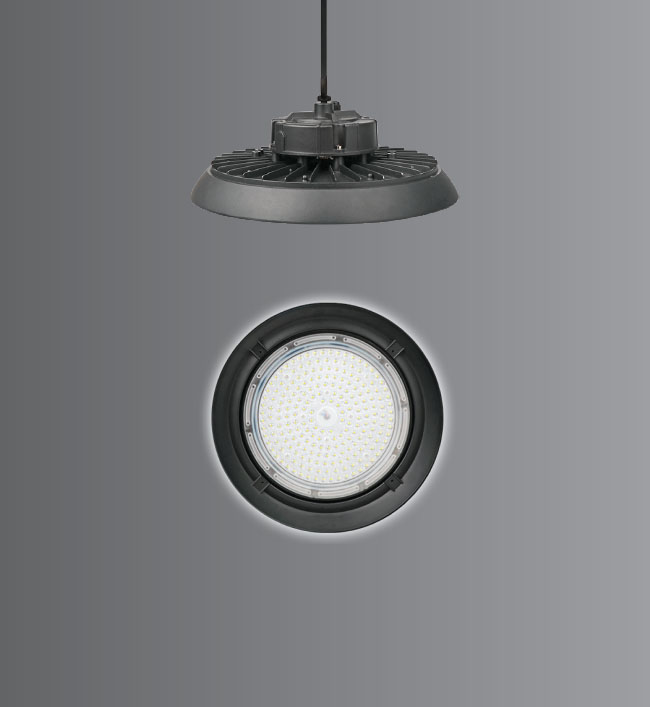

High Bay
High efficiency low / medium / high bay luminaires designed to provide uniform illumination in open spaces. Design and construction of the luminaires is characterized by its high luminous efficiency, extremely long service life. Sturdy construction makes low / medium / high bay especially suitable for areas where a high level of robustness is required.

Product Description
• Luminaire body made of die cast aluminium featuring high strength and anti corrosion.
• Clear polycarbonate optical cover
• Die-cast aluminium heatsink, more stable heat dissipation.
• Efficiency up to 100 lm/W
• Designed for mounting on ceiling with stainless steel suspension round hook.
• Available in 120°
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-2872-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 6500K

Product Benefits
• High luminous efficiency at reduced wattage.
• Versatile use, Simple installation
• Unique features and strong technical aspect of the products each range of these luminaires are the perfect choice for lighting in various industries with energy saving options.
• Designed to replace traditional high ceiling application.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

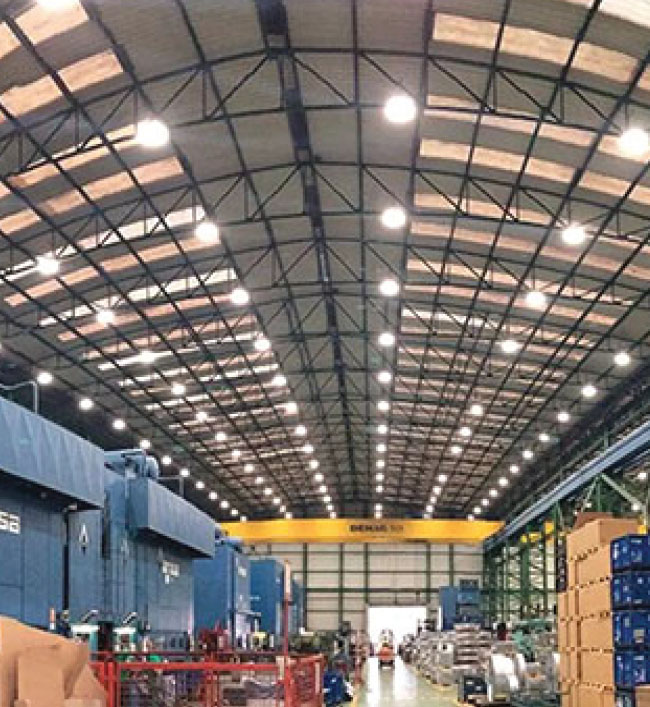

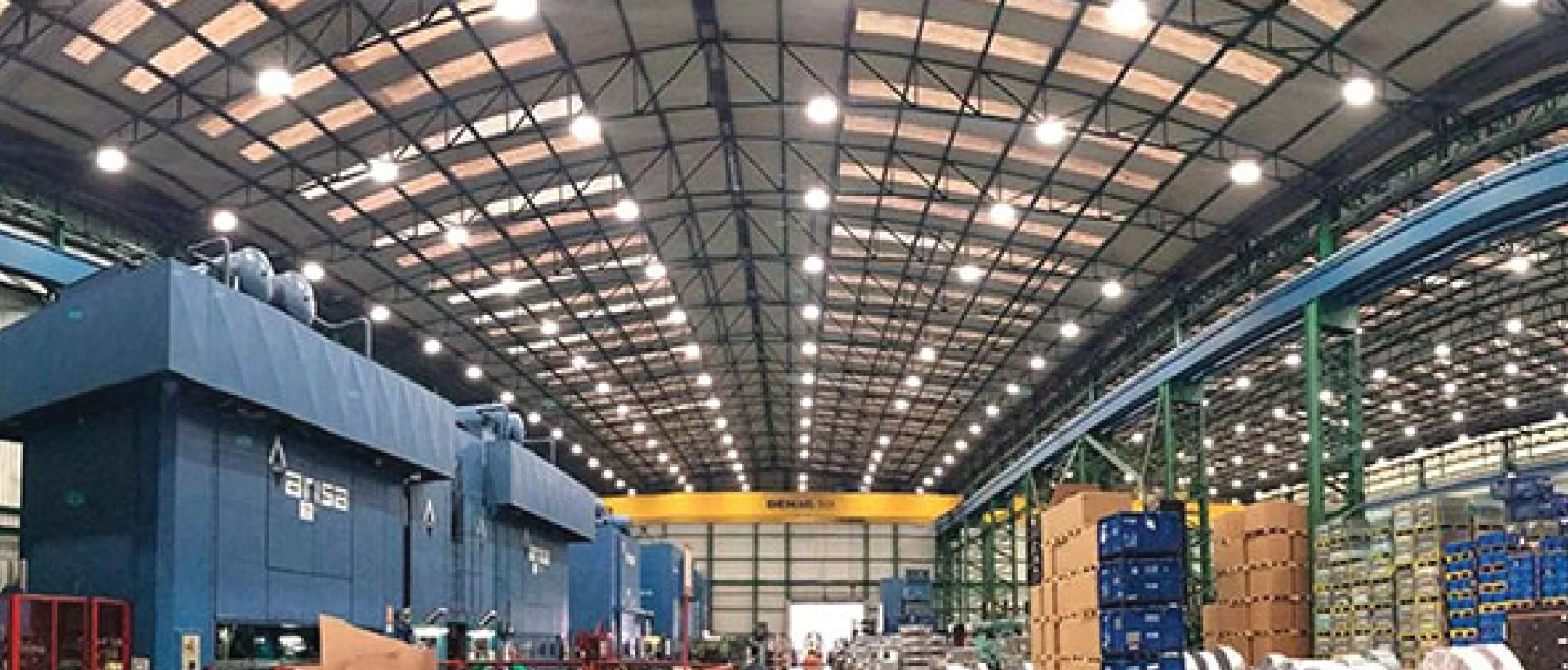

Petrol Bunk, Ware houses, Cold storage, Logistic hubs, Power / Steel / Thermal plants, High Ceiling areas, Parking areas, Auditorium, Sports halls, Shopping mall, Super market, Exhibition center.

Available Finish
Pure polyester powder coated Black.

Downloads
Catalogue Page
IDWattageDimension IESPhotometryTechnical Datasheet

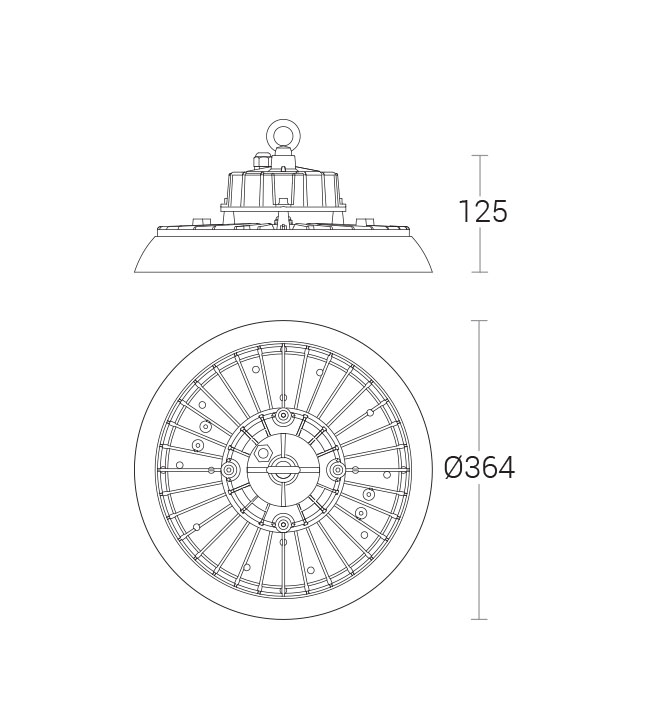

KL-2869150W LED WW,CW,NW BA:120°, Clear Polycarbonate Optical CoverØ364 x 125mm2869.pdf
KL-2872100W LED WW,CW,NW BA:120°, Clear Polycarbonate Optical CoverØ310 x 125mm2872.pdf
KL-2873200W LED WW,CW,NW BA:120°, Clear Polycarbonate Optical CoverØ410 x 125mm2873.pdf
